N PLAN EPI 100x/0,85 POL

Article Number 11556074
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 0.33
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-P, TL-POL, IL-BF, IL-DIC, IL-P, IL-POL, FLUO
Numerical Aperture 0.85
Objective Thread M25
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL
Transmission -

Figure

N PLAN EPI 100x/0,85 POL

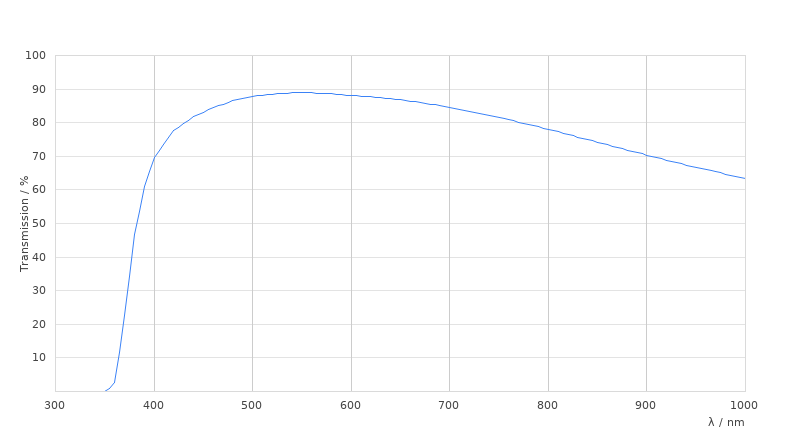

Transmission Curve

N PLAN EPI 100x/0,85 POL

Dimension Sheet

N PLAN EPI 100x/0,85 POL
