HC PL FLUOTAR 40x/0,80 POL

Article Number 11556087
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.4
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-POL, FLUO
Numerical Aperture 0.8
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques POL
Transmission UV (340nm)

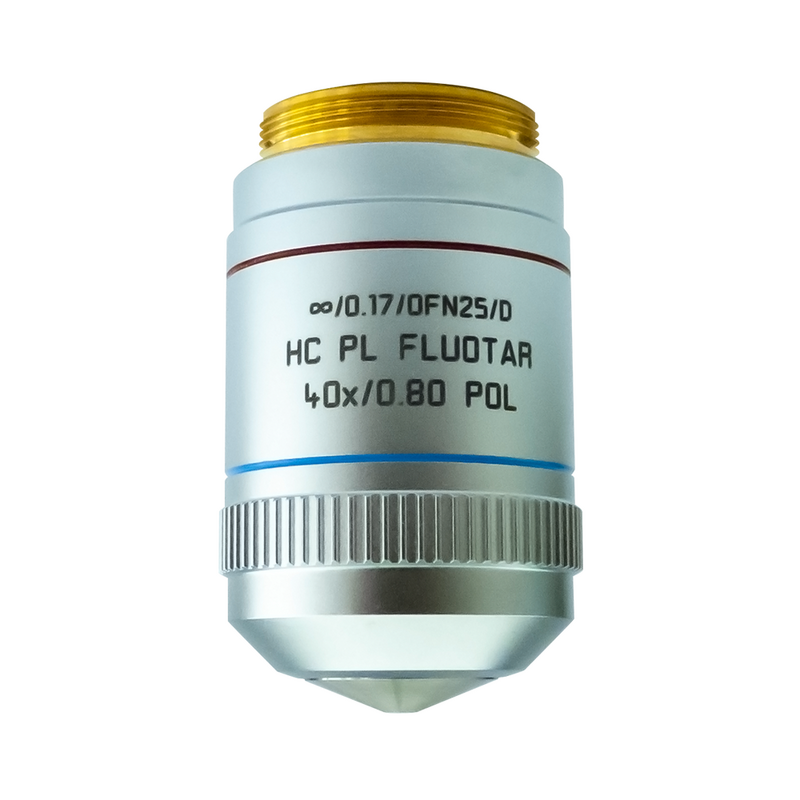

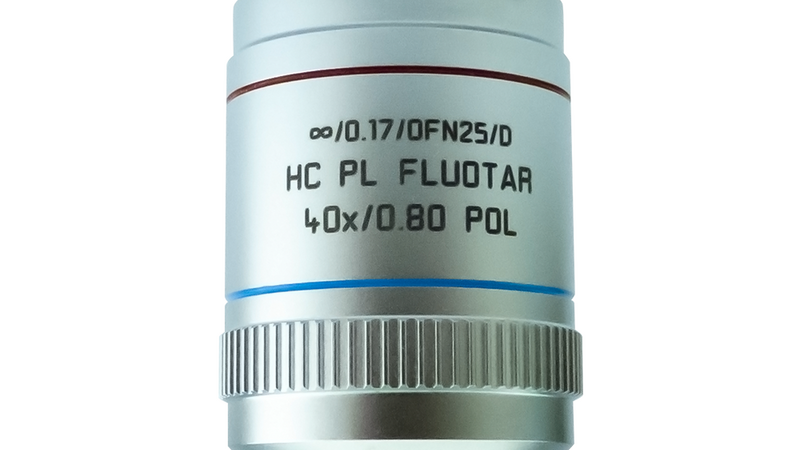

Figure

HC PL FLUOTAR 40x/0,80 POL

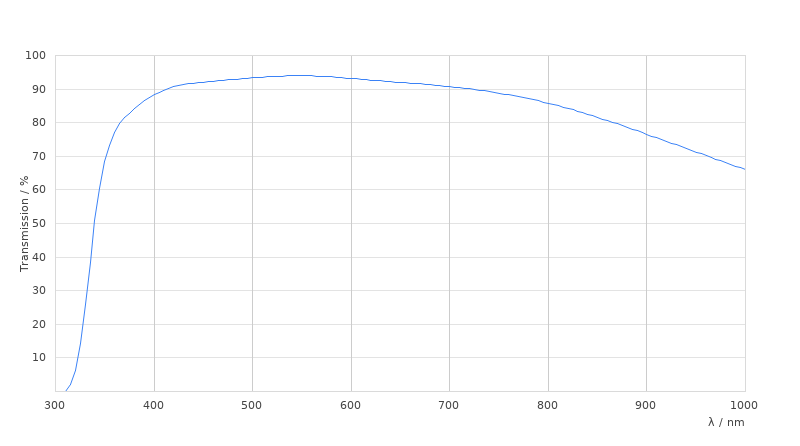

Transmission Curve

HC PL FLUOTAR 40x/0,80 POL

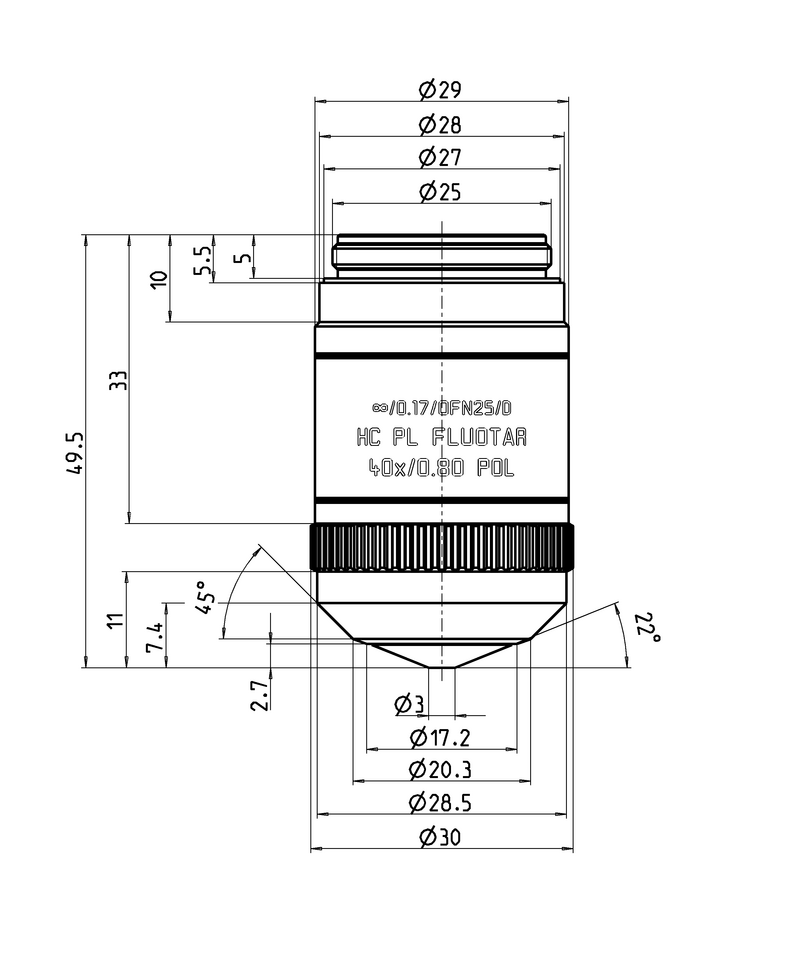

Dimension Sheet

HC PL FLUOTAR 40x/0,80 POL
