EPI 50x/0.85 OIL POL XLR

Article Number 11556090
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 16
Free Working Distance (WD in mm) 0.27
Immersion Oil
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-POL, IL-BF, IL-POL, FLUO
Numerical Aperture 0.85
Objective Thread M25
Objective Type N
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL

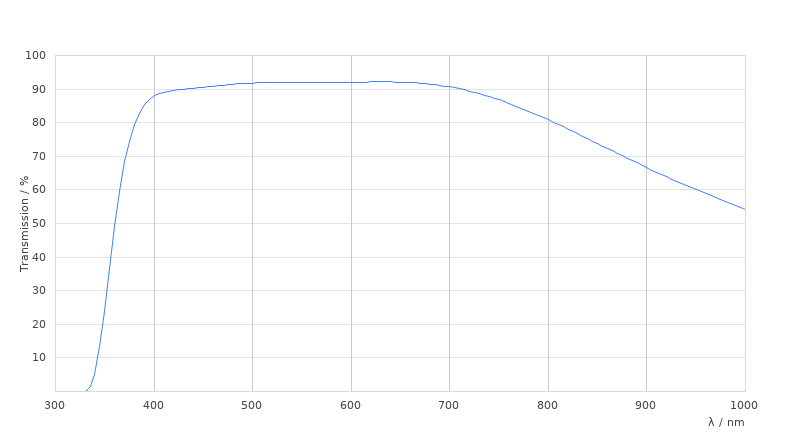

Transmission UV (365nm)

Figure

EPI 50x/0.85 OIL POL XLR

Dimension Sheet

EPI 50x/0.85 OIL POL XLR
