HC PL FLUOTAR 10x/0,30 POL

Article Number 11556503
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 11.0
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-POL, TL-DF, IL-BF, IL-DIC, IL-P, IL-POL, FLUO
Numerical Aperture 0.3
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques IL, POL
Transmission UV (340nm)

Figure

HC PL FLUOTAR 10x/0,30 POL

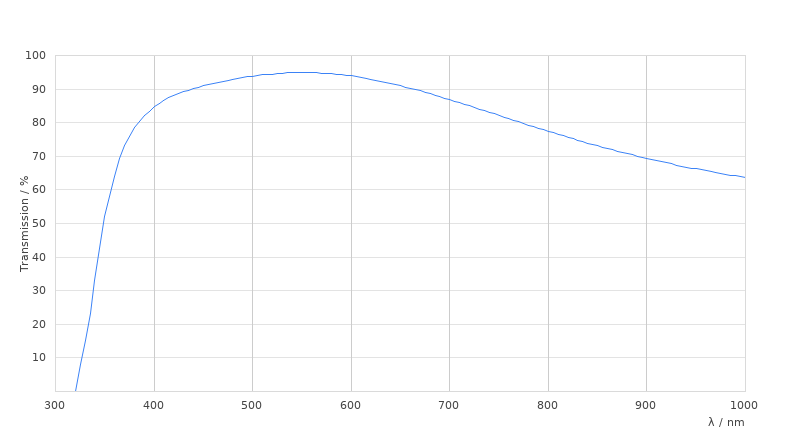

Transmission Curve

HC PL FLUOTAR 10x/0,30 POL

Dimension Sheet

HC PL FLUOTAR 10x/0,30 POL
