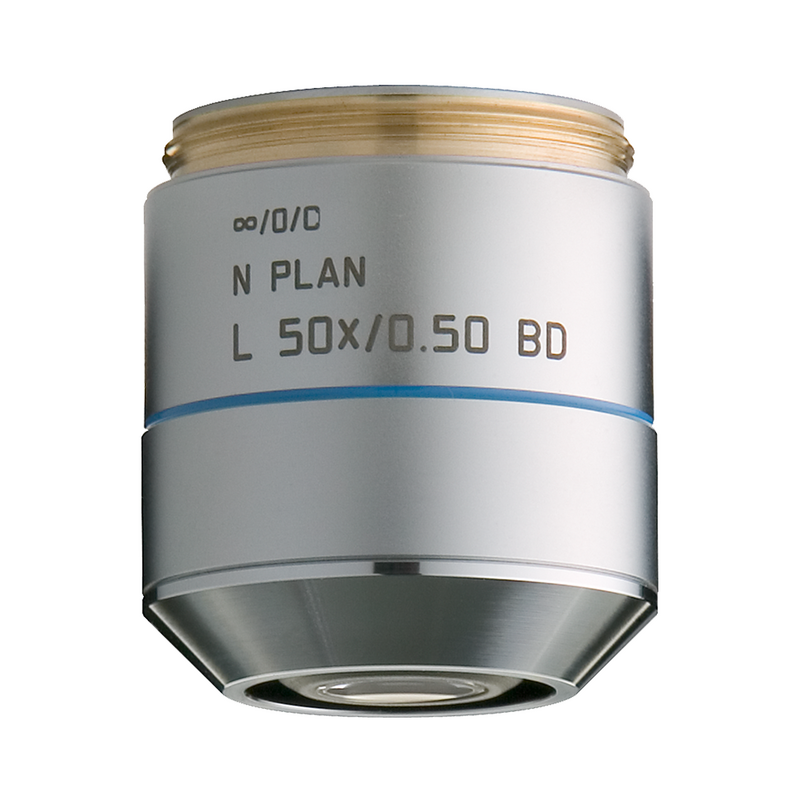

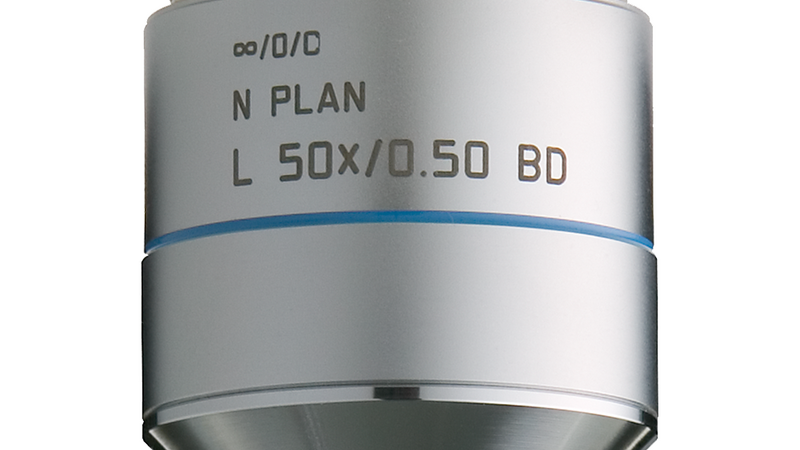

Microscope Objective N PLAN L 50x/0,50 BD

Objective N PLAN L 50x/0,50 BD has a magnification of 50X and a numerical aperture of 0.5mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 8.1mm and a FN of 22.

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN L 50x/0,50 BD
N PLAN L 50x/0,50 BD
N PLAN L 50x/0,50 BD
N PLAN L 50x/0,50 BD
N PLAN L 50x/0,50 BD
N PLAN L 50x/0,50 BD

Technical Specs

Article Number 11566038
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 22
Free Working Distance (WD in mm) 8.1
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.5
Objective Thread M32
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL

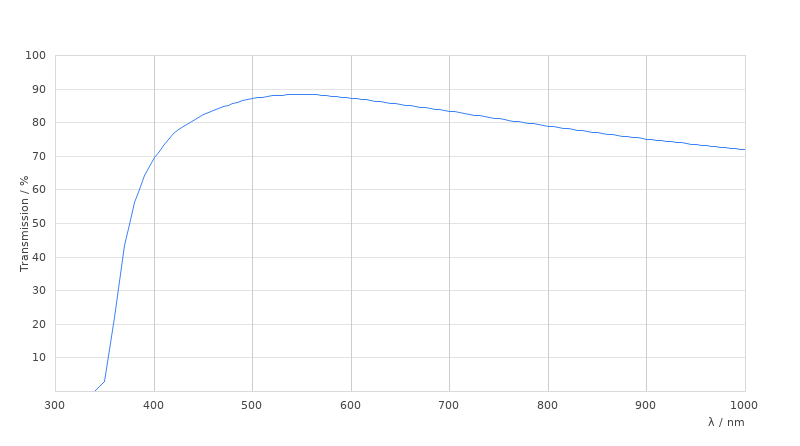

Transmission UV (365nm)
