Article Number 11566047
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism B
Field Number (FN) 22
Free Working Distance (WD in mm) 3.5
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, IL-BF, IL-DIC, IL-P, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL
Transmission -

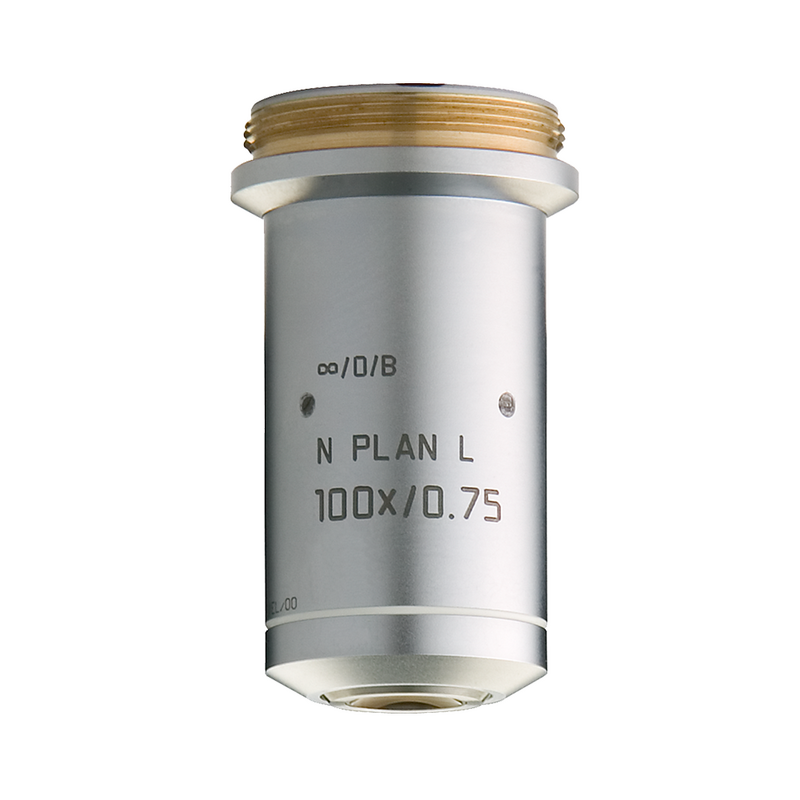

Figure

N PLAN L 100x/0,75

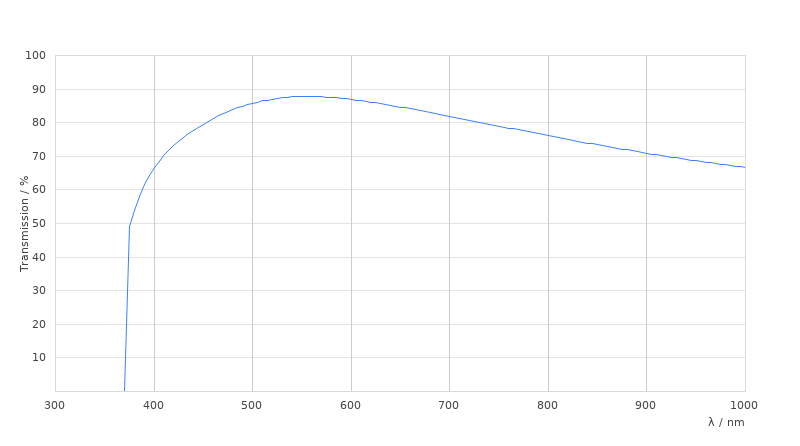

Transmission Curve

N PLAN L 100x/0,75

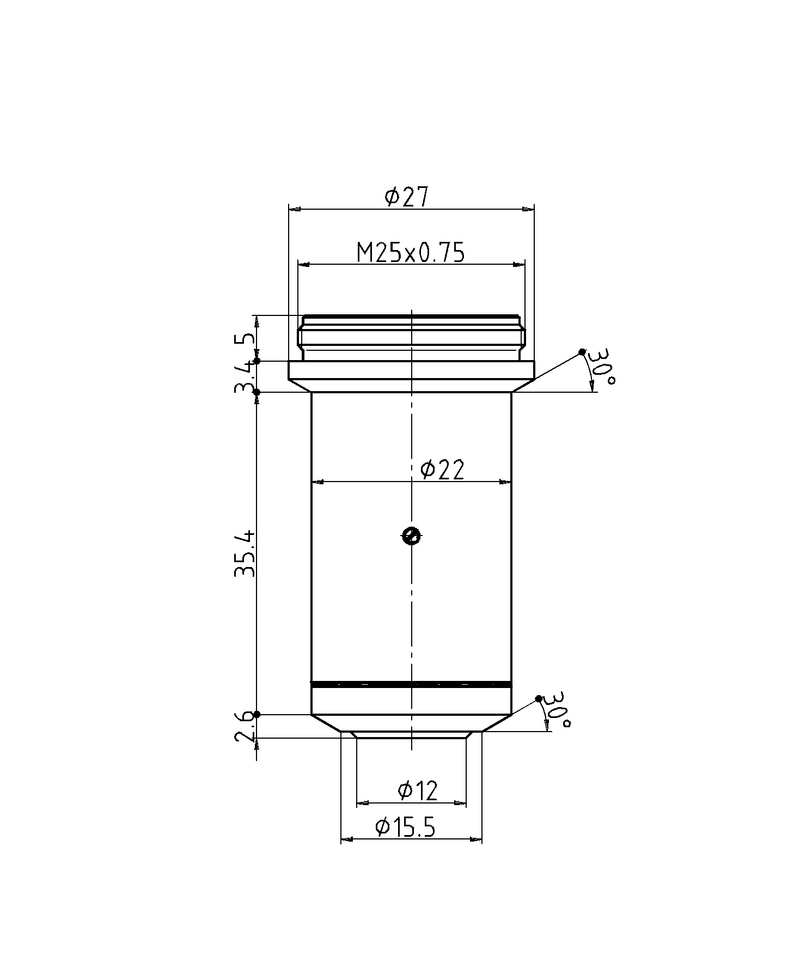

Dimension Sheet

N PLAN L 100x/0,75
