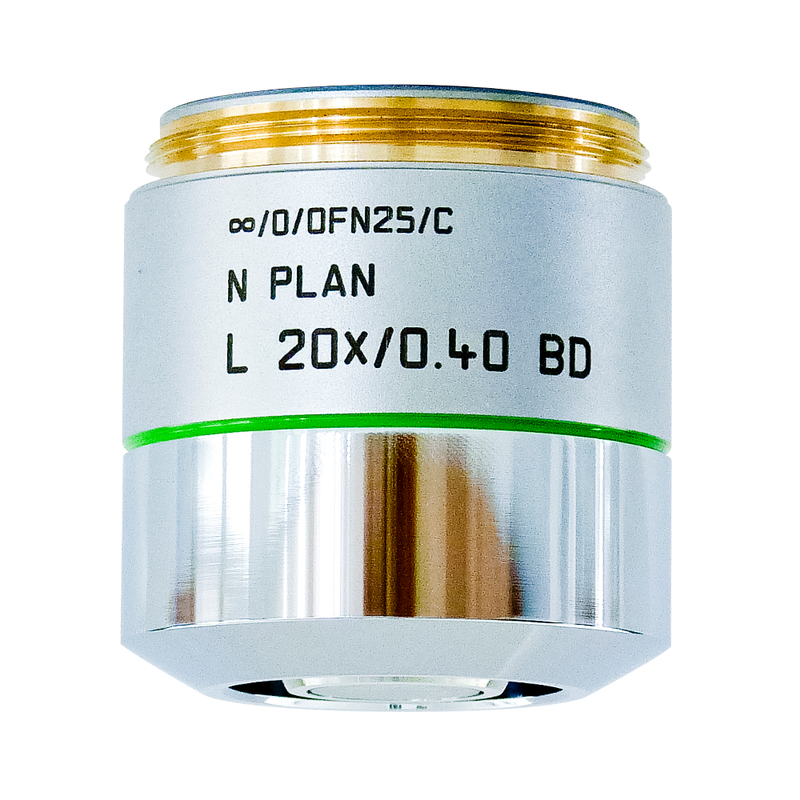

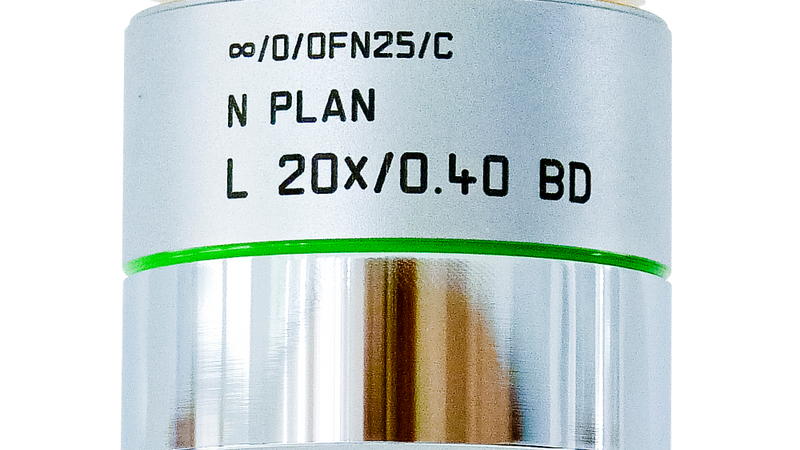

Microscope Objective N PLAN L 20x/0,40 BD
Product No. 11566051
Objective N PLAN L 20x/0,40 BD has a magnification of 20X and a numerical aperture of 0.4mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 10.8mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11566051 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | Without |
| Exit Pupil Position/DIC prism | C |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 10.8 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 20⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, IL-BF, IL-DIC, IL-P, IL-DF, FLUO |
| Numerical Aperture | 0.4 |
| Objective Thread | M32 |
| Objective Type | N PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | BD, IL |

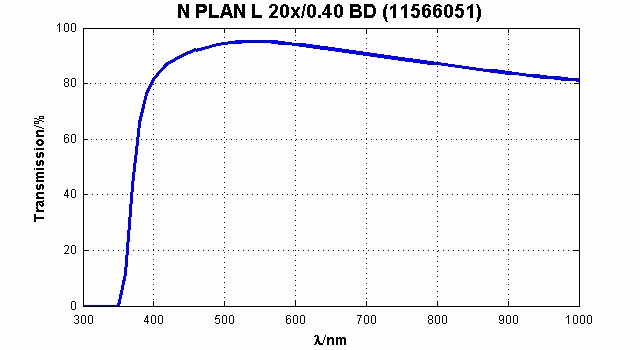

| Transmission | UV (365nm) |
