HC PL FLUOTAR 1.6x/0.05

Article Number 11566059
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 1.54
Immersion Dry
Iris Diaphragm Without
Magnification 1.6⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-P, FLUO
Numerical Aperture 0.05
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL
Transmission UV (365nm)

Figure

HC PL FLUOTAR 1.6x/0.05

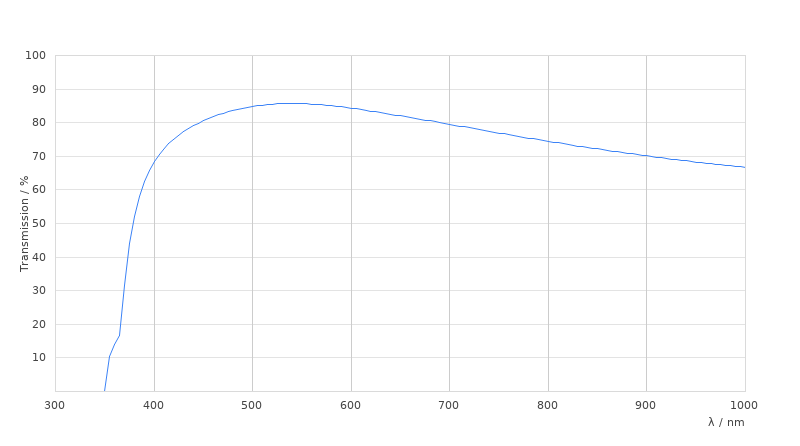

Transmission Curve

HC PL FLUOTAR 1.6x/0.05

Dimension Sheet

HC PL FLUOTAR 1.6x/0.05
