Article Number 11566064
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.28
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, IL-BF, IL-DIC, FLUO
Numerical Aperture 0.9
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques IL
Transmission UV (365nm)

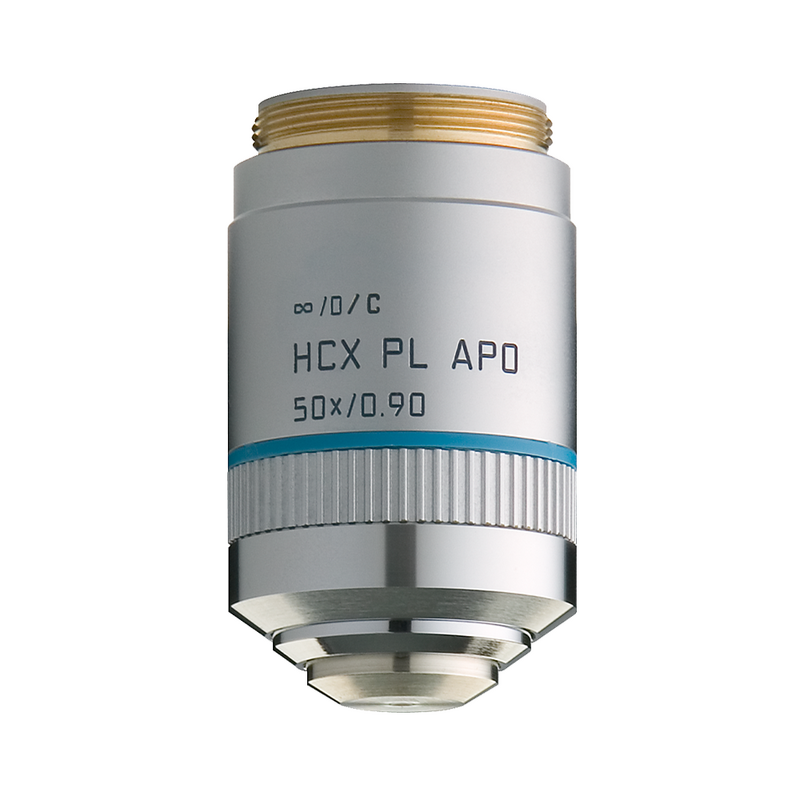

Figure

HC PL APO 50x/0,90

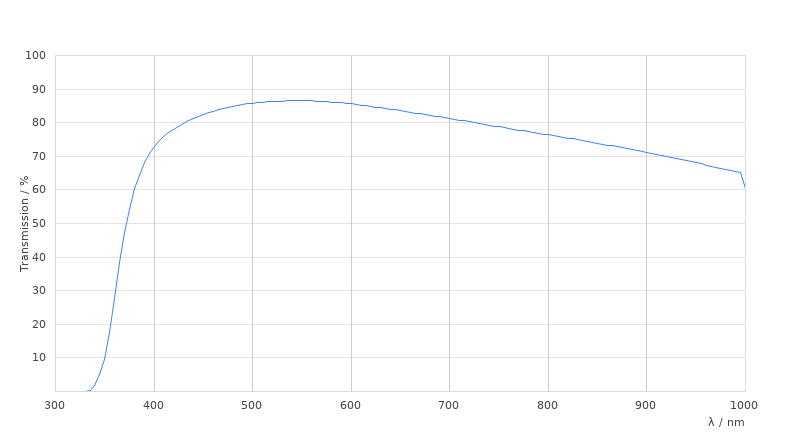

Transmission Curve

HC PL APO 50x/0,90

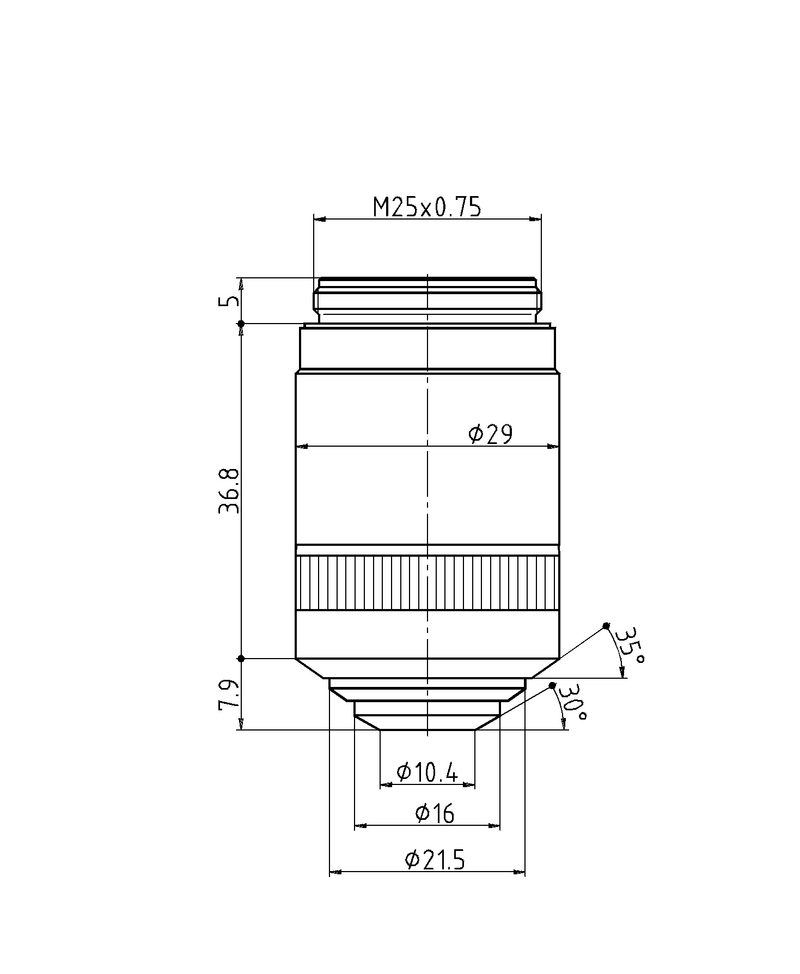

Dimension Sheet

HC PL APO 50x/0,90
