N PLAN EPI 100x/0,85

Article Number 11566073
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 0.33
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-DIC, IL-P, FLUO
Numerical Aperture 0.85
Objective Thread M25
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques IL
Transmission -

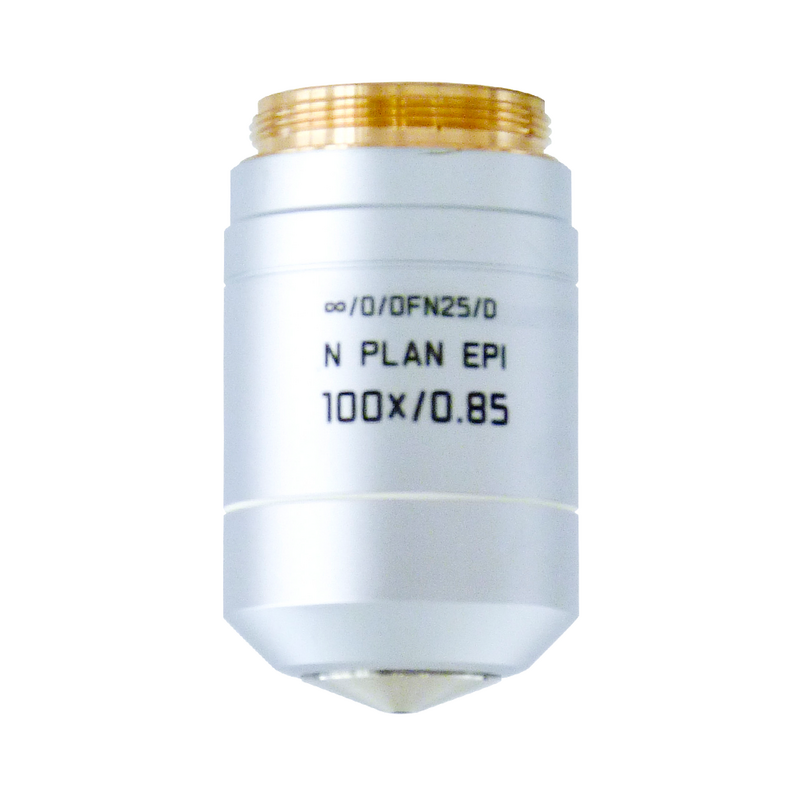

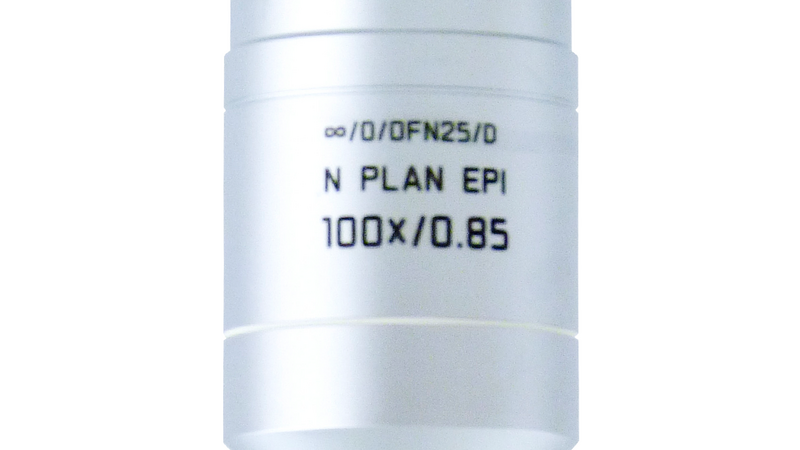

Figure

N PLAN EPI 100x/0,85

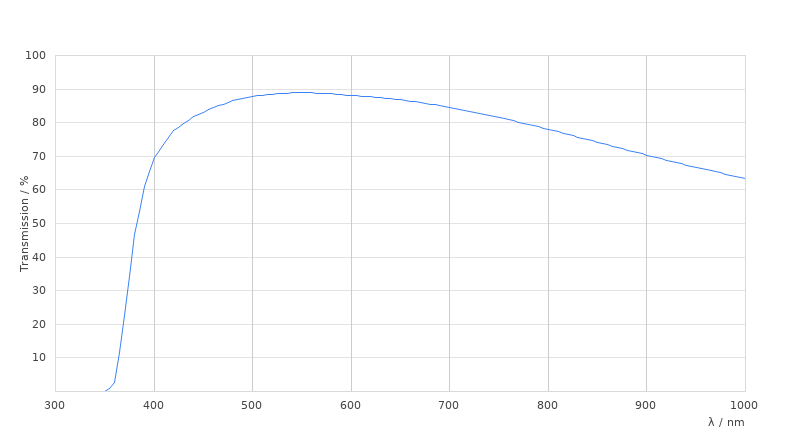

Transmission Curve

N PLAN EPI 100x/0,85

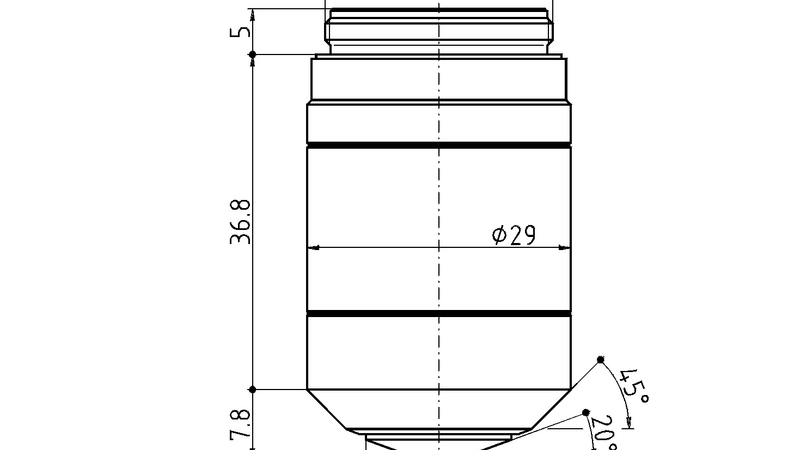

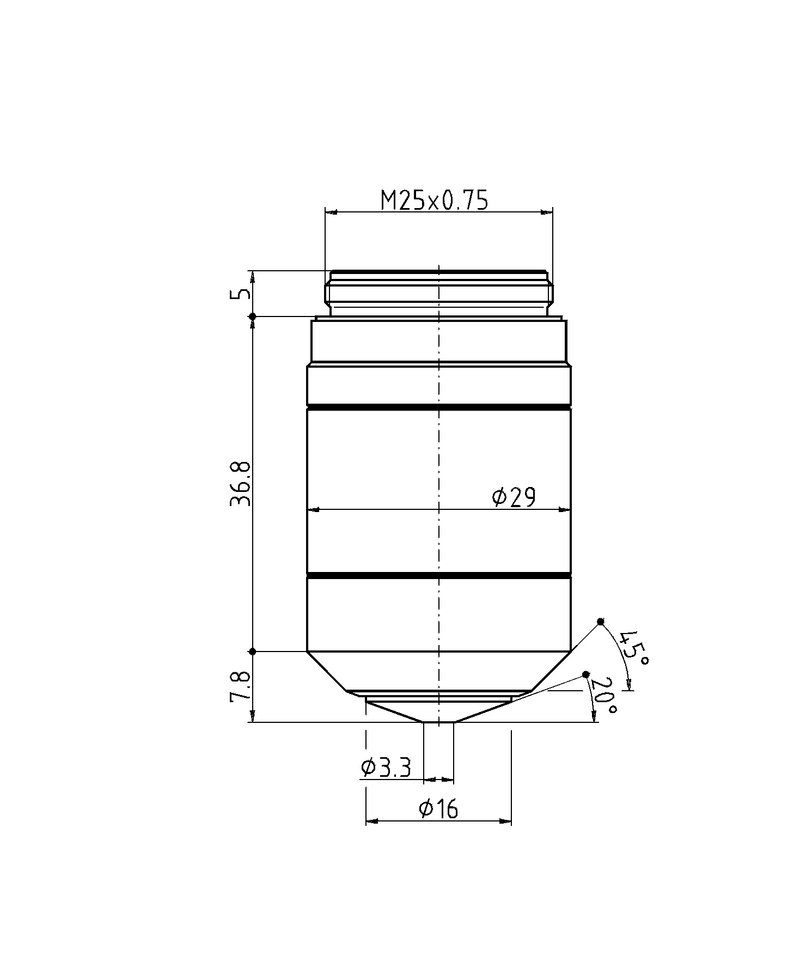

Dimension Sheet

N PLAN EPI 100x/0,85
