Microscope Objective N PLAN EPI 100x/0,85 BD
Product No. 11566075
Objective N PLAN EPI 100x/0,85 BD has a magnification of 100X and a numerical aperture of 0.85mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 0.33mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11566075 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | Without |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 0.33 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 100⨉ |
| Contrasting Methodes | TL-BF, TL-P, IL-BF, IL-DIC, IL-P, IL-DF, FLUO |
| Numerical Aperture | 0.85 |
| Objective Thread | M32 |
| Objective Type | N PLAN |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | BD, IL |

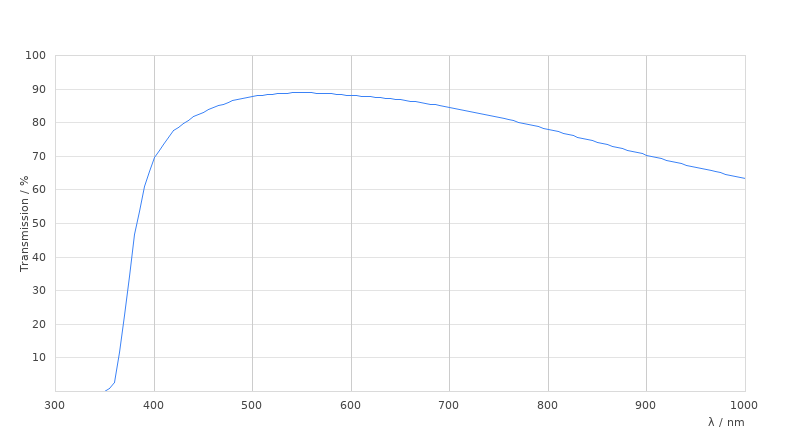

| Transmission | - |
