| Article Number | 11566078 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | Without |
| Exit Pupil Position/DIC prism | D |
| Field of View (FOV in mm) | 22 |
| Free Working Distance (WD in mm) | 0.37 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 40⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, IL-DF, FLUO |
| Numerical Aperture | 0.75 |
| Objective Thread | M32 |
| Objective Type | N PLAN |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | BD, IL |
| Transmission | UV (365nm) |
Figure

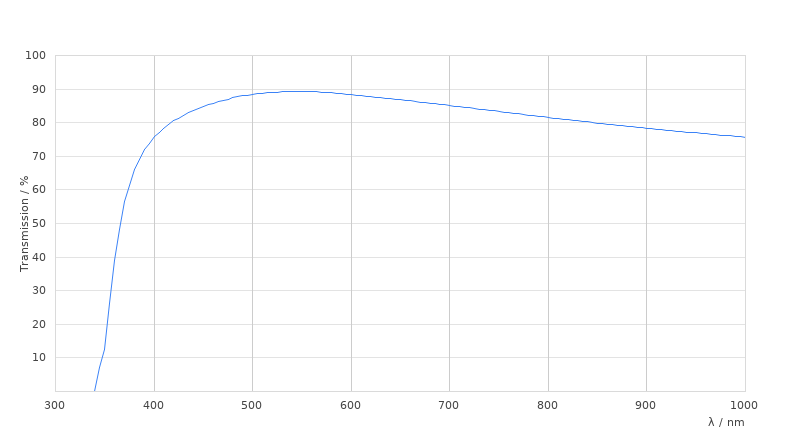

Transmission Curve

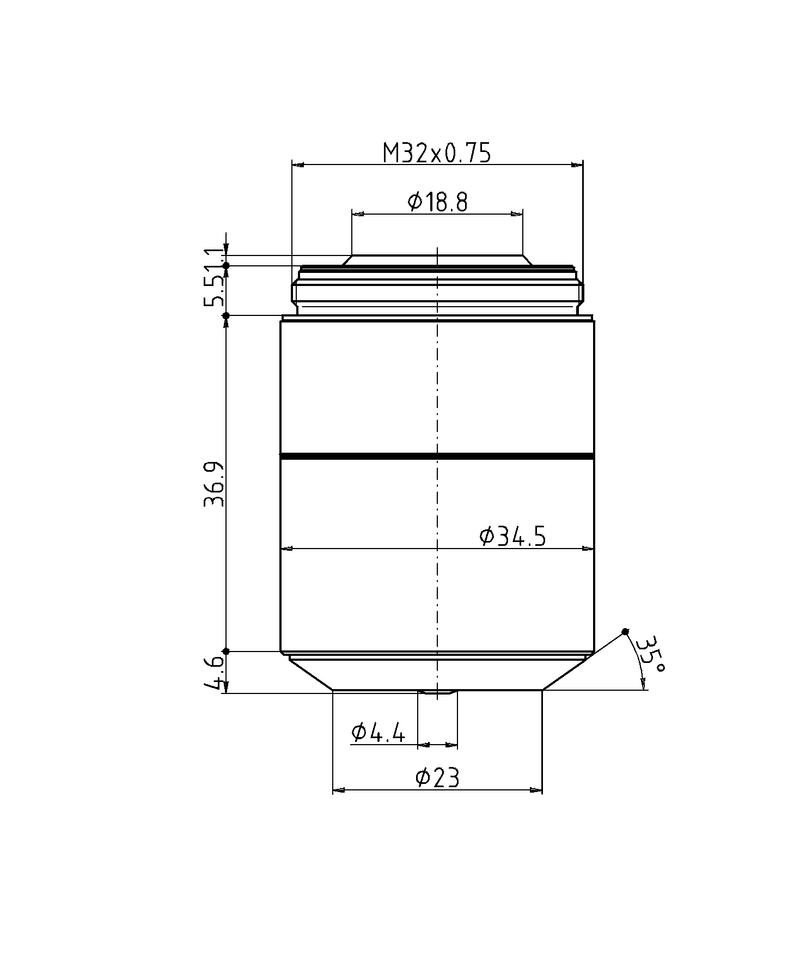

Dimension Sheet
