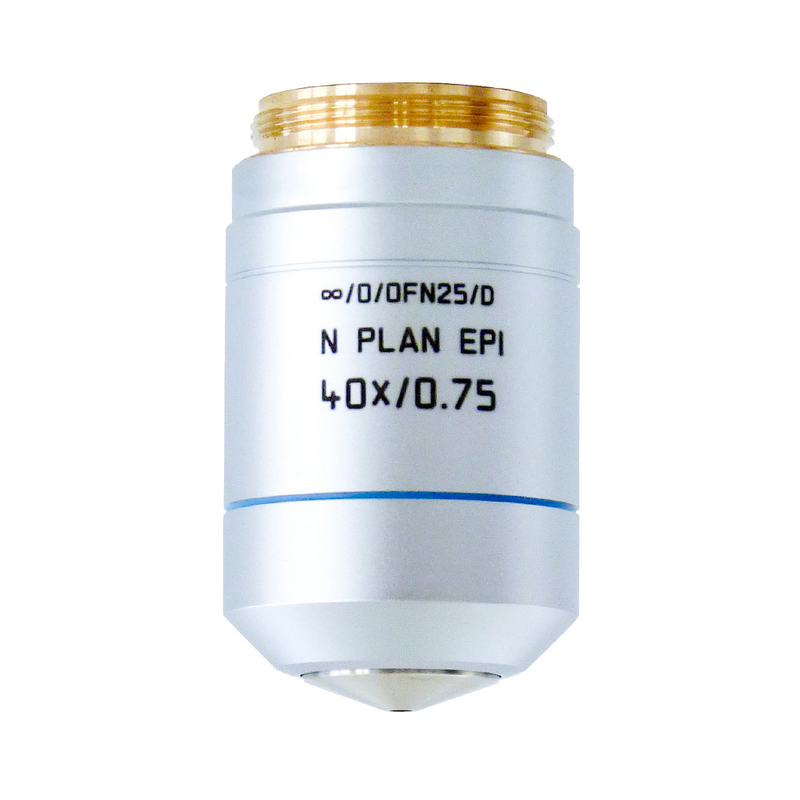

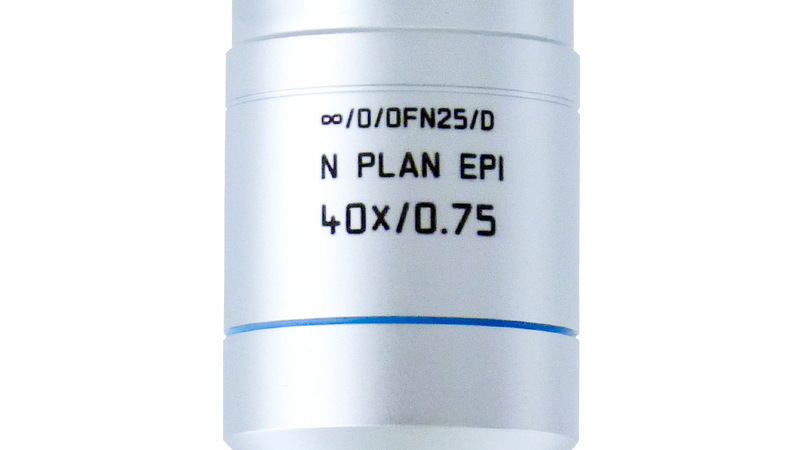

Microscope Objective N PLAN EPI 40x/0,75

<p>Objective N PLAN EPI 40x/0,75 has a magnification of 40X and a numerical aperture of 0.75mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.37mm and a FN of 22.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN EPI 40x/0,75
N PLAN EPI 40x/0,75
N PLAN EPI 40x/0,75
N PLAN EPI 40x/0,75

Technical Specs

Article Number 11566079
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 0.37
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques IL

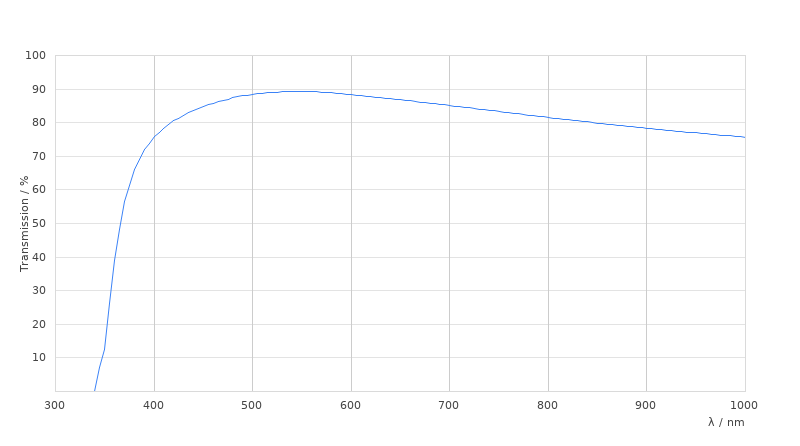

Transmission UV (365nm)
