N PLAN EPI 10x/0,25 BD

Article Number 11566083
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism B
Field Number (FN) 25
Free Working Distance (WD in mm) 16.1
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.25
Objective Thread M32
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission UV (365nm)

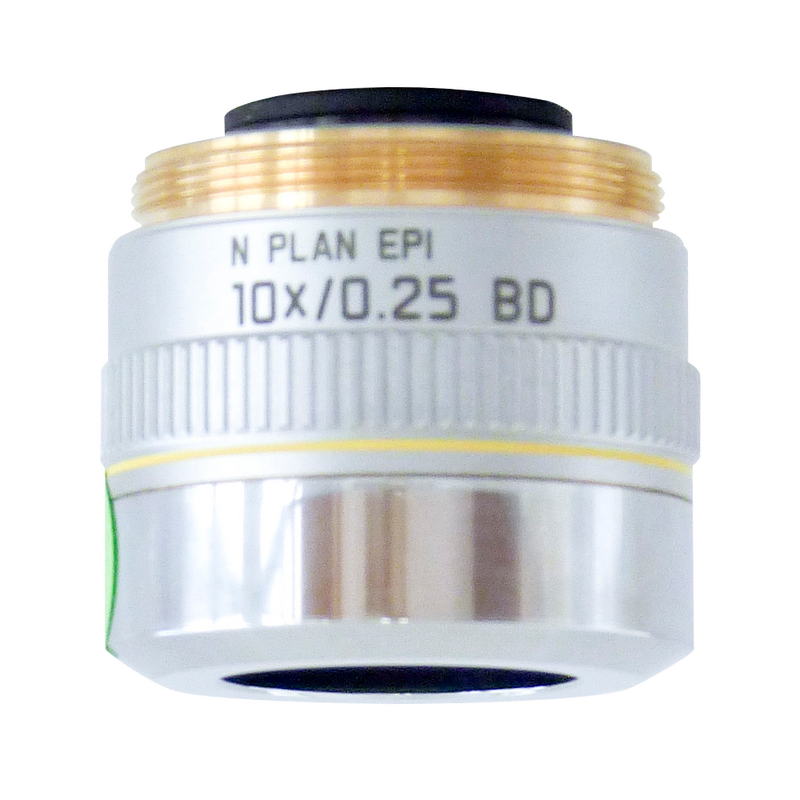

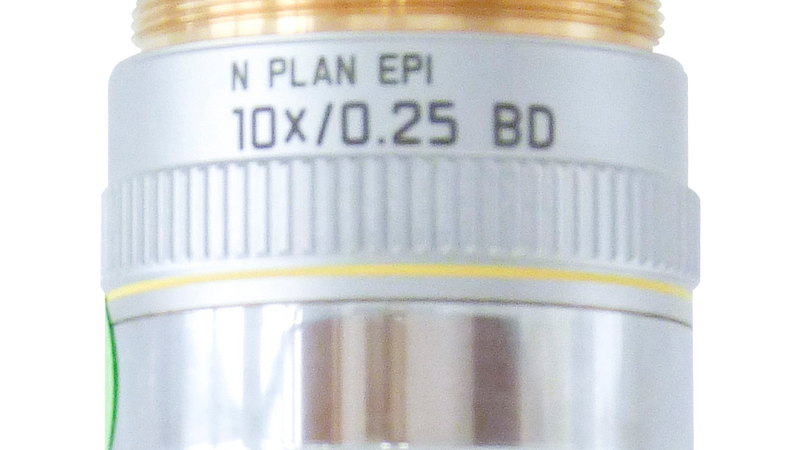

Figure

N PLAN EPI 10x/0,25 BD

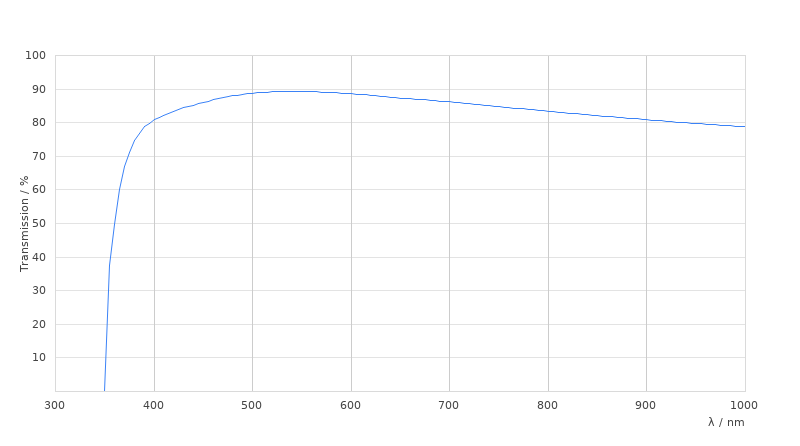

Transmission Curve

N PLAN EPI 10x/0,25 BD

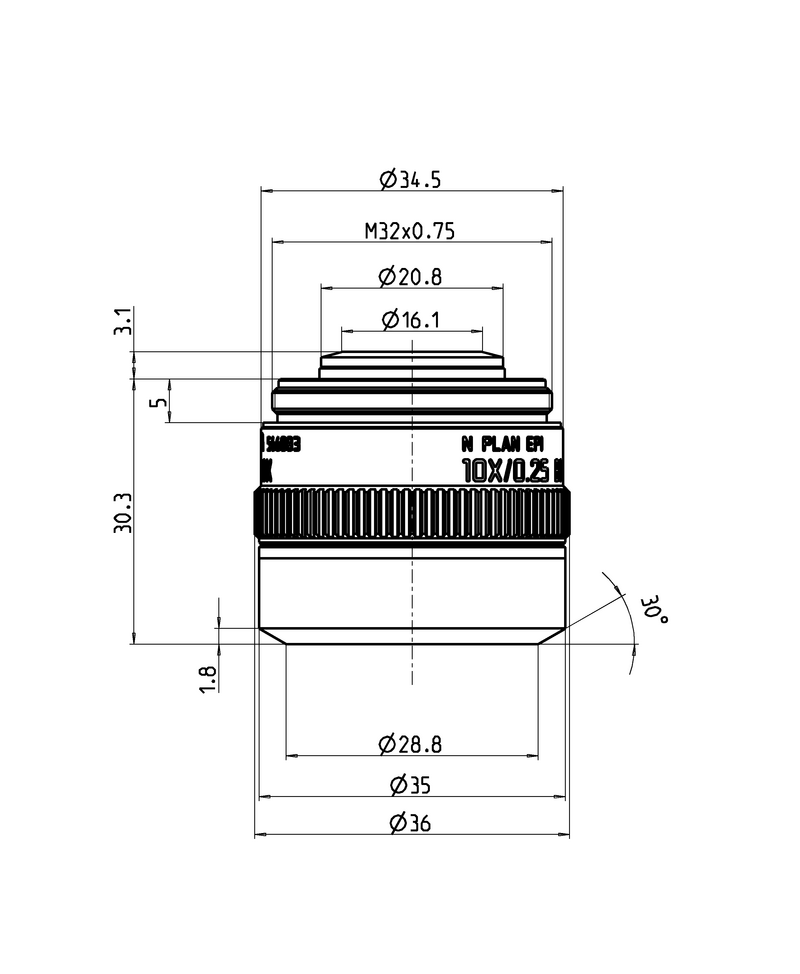

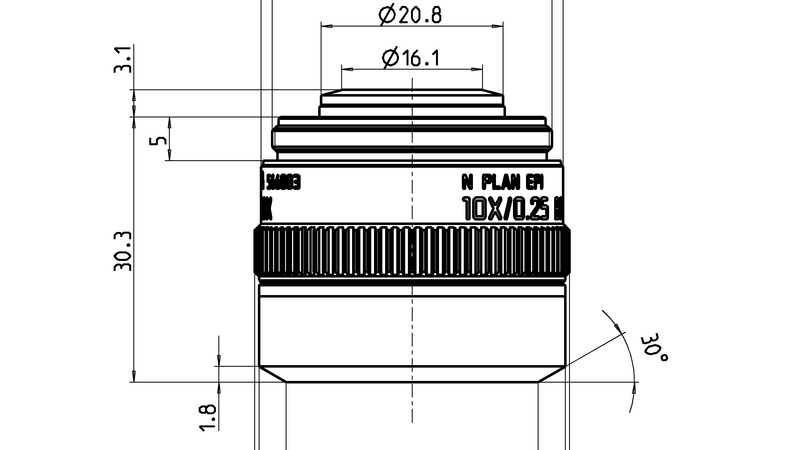

Dimension Sheet

N PLAN EPI 10x/0,25 BD
