Microscope Objective HC PL FLUOTAR L 50x/0.55

<p>Objective HC PL FLUOTAR L 50x/0.55 has a magnification of 50X and a numerical aperture of 0.55mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 8.1mm and a FN of 25.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR L 50x/0.55
HC PL FLUOTAR L 50x/0.55
HC PL FLUOTAR L 50x/0.55
HC PL FLUOTAR L 50x/0.55

Technical Specs

Article Number 11566084
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 8.1
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-DIC, IL-P, FLUO
Numerical Aperture 0.55
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL

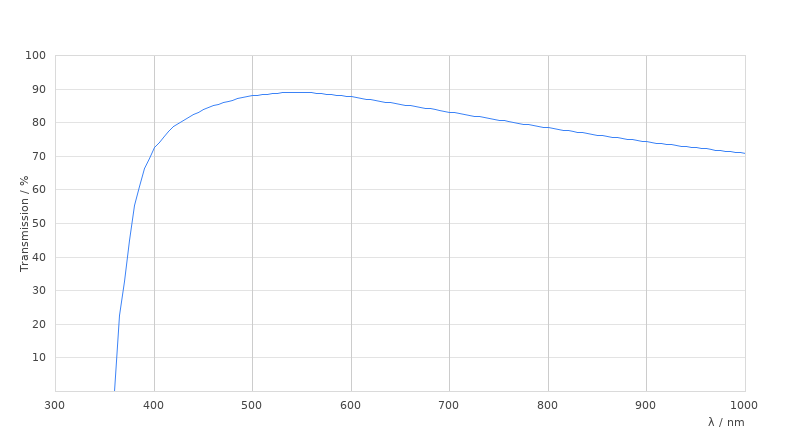

Transmission -
