| Article Number | 11566204 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | Without |
| Exit Pupil Position/DIC prism | C |
| Field of View (FOV in mm) | 25 |
| Free Working Distance (WD in mm) | 0.25 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 150⨉ |
| Contrasting Methodes | TL-BF, IL-BF, IL-DIC, IL-DF, FLUO |
| Numerical Aperture | 0.9 |
| Objective Thread | M32 |
| Objective Type | PLAN APO |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | BD, IL |
| Transmission | UV (365nm) |
Figure

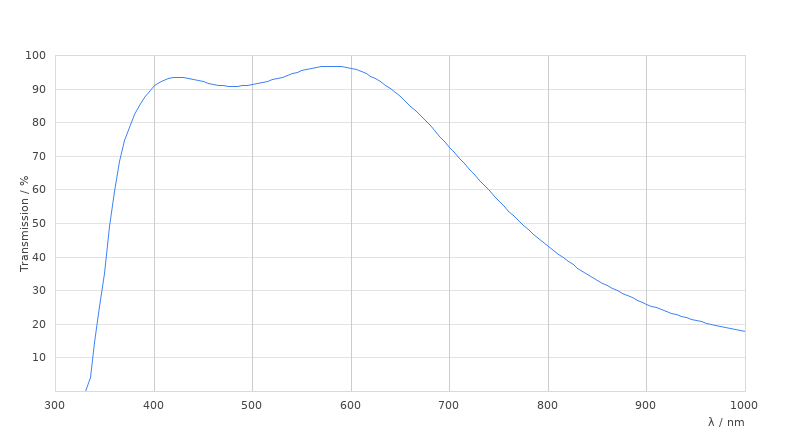

Transmission Curve
Dimension Sheet
