HC PL APO 150x/0,90 BD

Article Number 11566205
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.25
Immersion Dry
Iris Diaphragm Without
Magnification 150⨉
Contrasting Methodes TL-BF, IL-BF, IL-DIC, IL-DF, FLUO
Numerical Aperture 0.9
Objective Thread M32
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission -

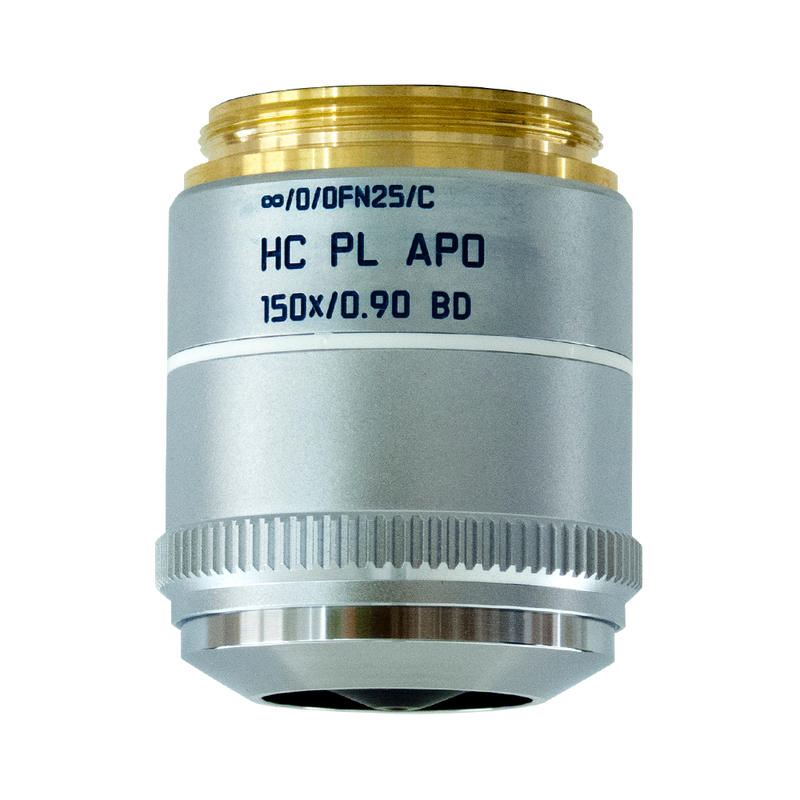

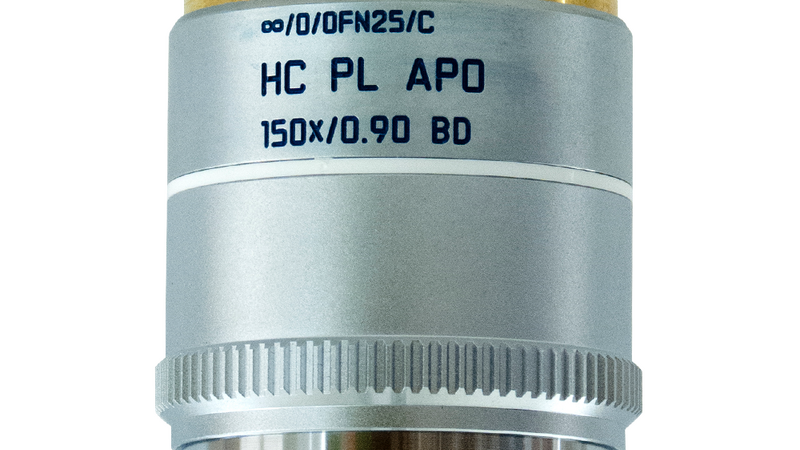

Figure

HC PL APO 150x/0,90 BD

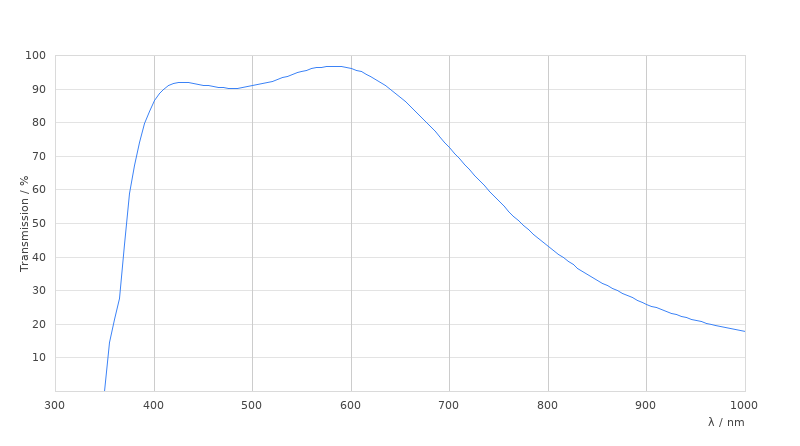

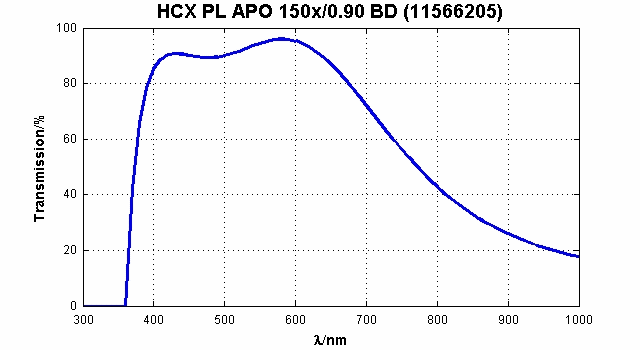

Transmission Curve

HC PL APO 150x/0,90 BD

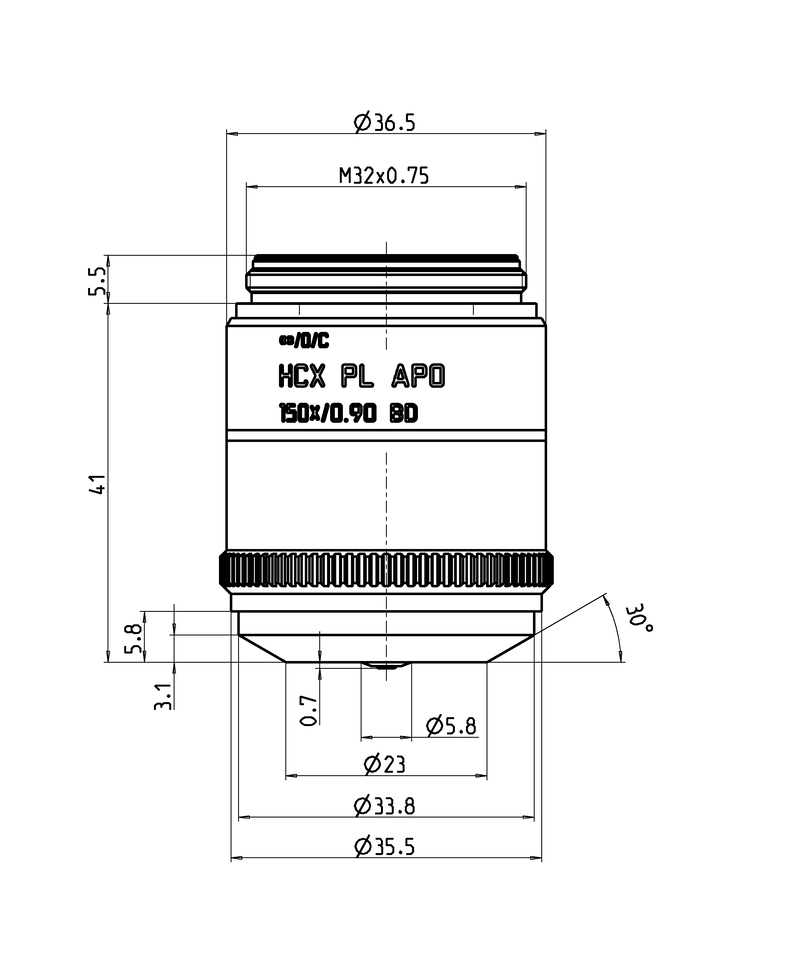

Dimension Sheet

HC PL APO 150x/0,90 BD
