HC PL FLUOTAR L 20x/0,40 BD

Article Number 11566206
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 11.1
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.4
Objective Thread M32
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission UV (365nm)

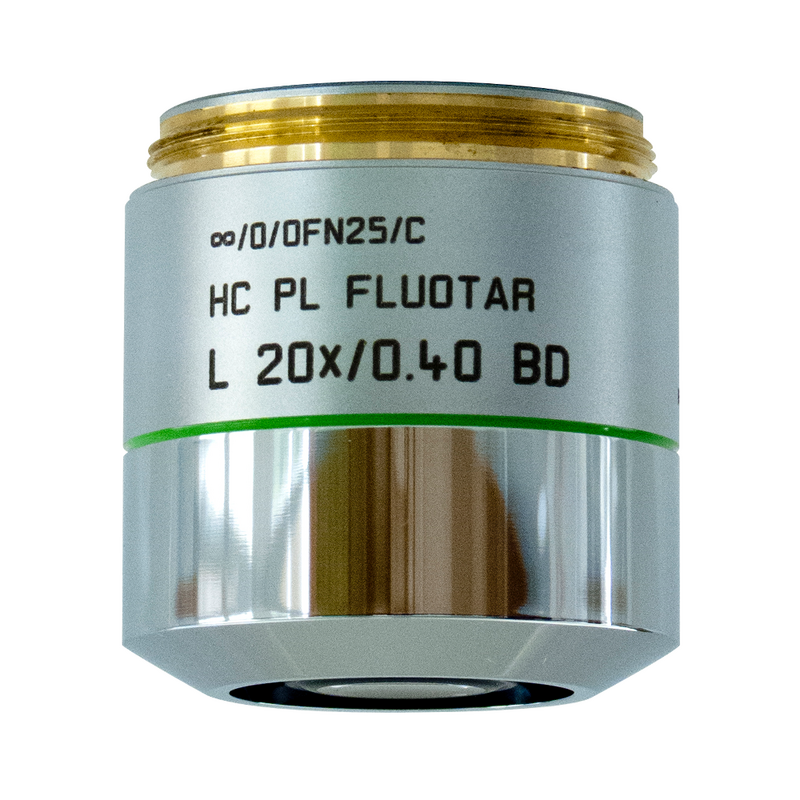

Figure

HC PL FLUOTAR L 20x/0,40 BD

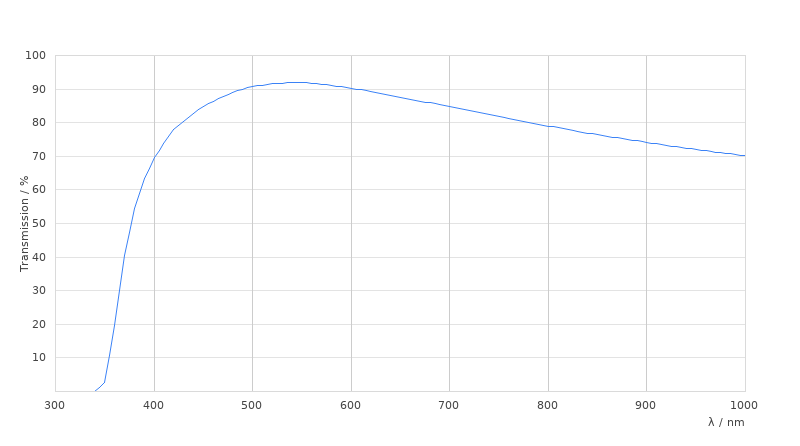

Transmission Curve

HC PL FLUOTAR L 20x/0,40 BD

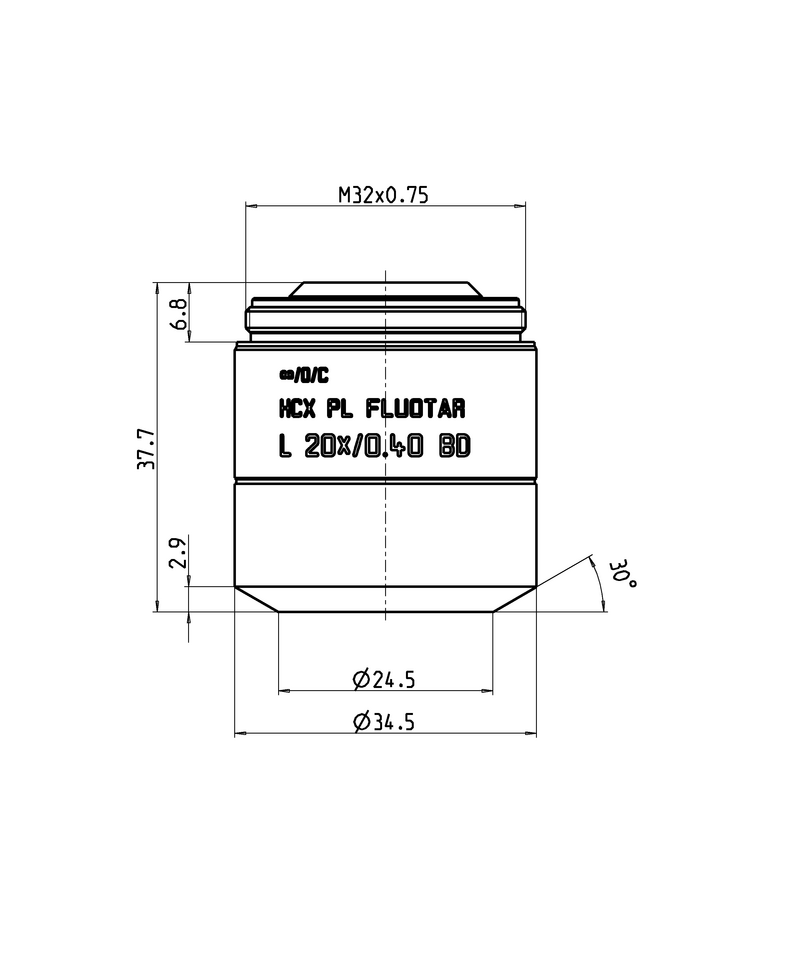

Dimension Sheet

HC PL FLUOTAR L 20x/0,40 BD
