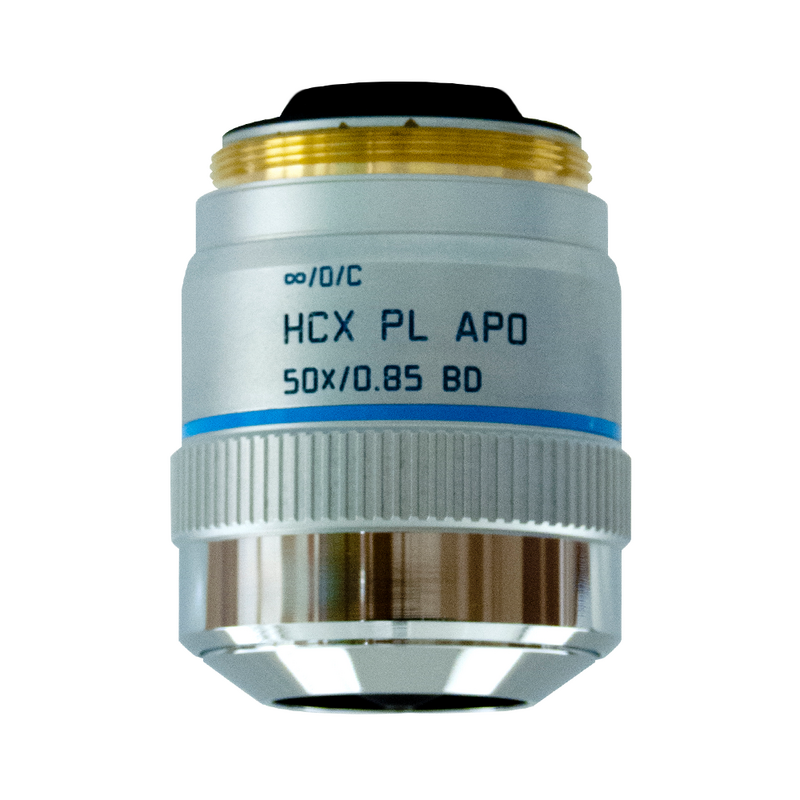

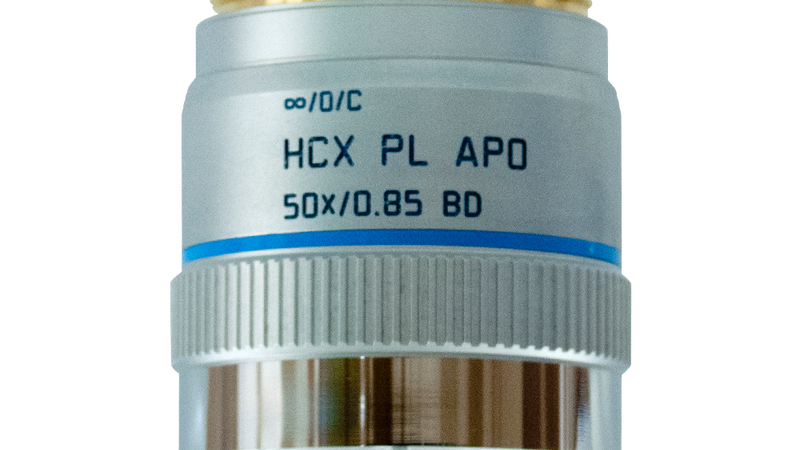

HC PL APO 50x/0,85 BD

Article Number 11566208
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.34
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, IL-BF, IL-DIC, IL-DF, FLUO
Numerical Aperture 0.85
Objective Thread M32
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission UV (365nm)

Figure

HC PL APO 50x/0,85 BD

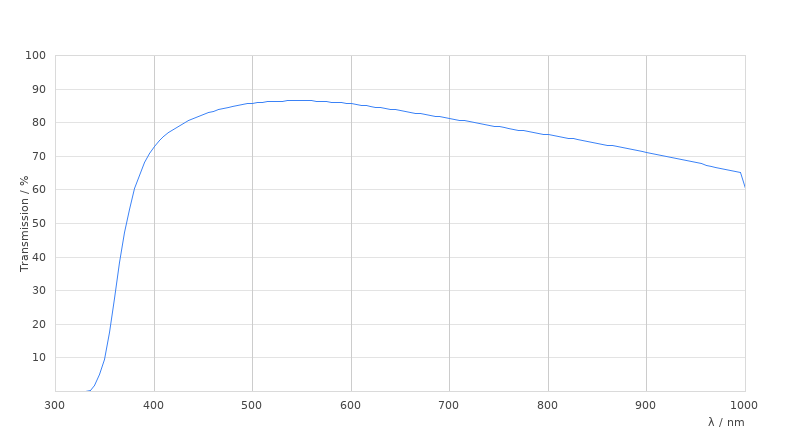

Transmission Curve

HC PL APO 50x/0,85 BD
