HC PL APO 100x/0,90 BD

Article Number 11566209
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.2
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, IL-BF, IL-DIC, IL-DF, FLUO
Numerical Aperture 0.9
Objective Thread M32
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission UV (365nm)

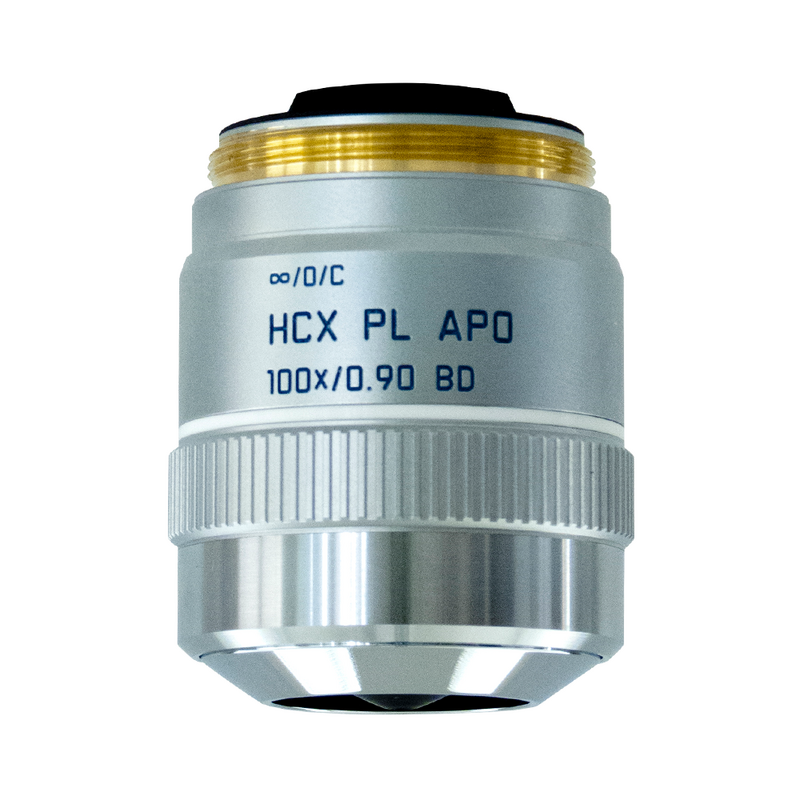

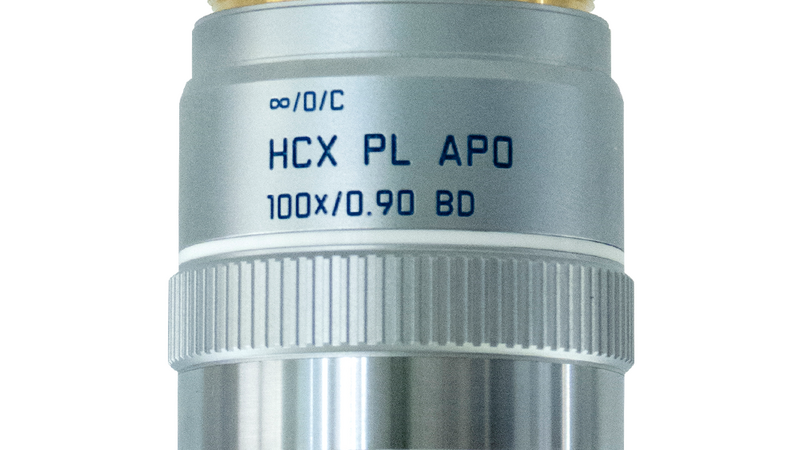

Figure

HC PL APO 100x/0,90 BD

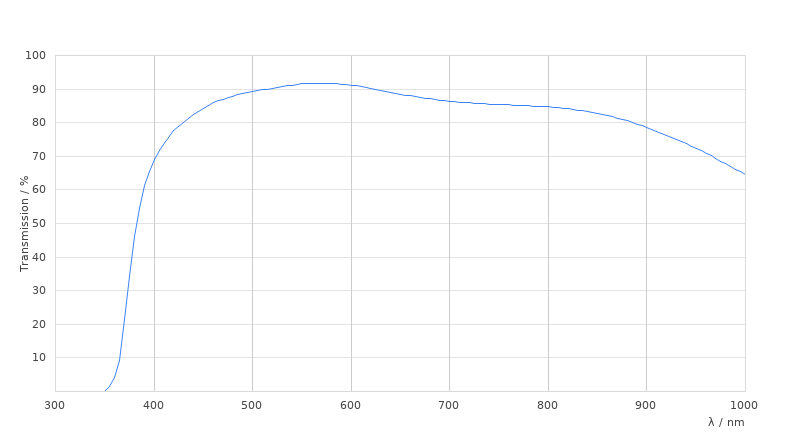

Transmission Curve

HC PL APO 100x/0,90 BD
