HC PL FLUOTAR 20x/0,45 BD

Article Number 11566509
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 3.0
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.45
Objective Thread M32
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD new, IL
Transmission UV (365nm)

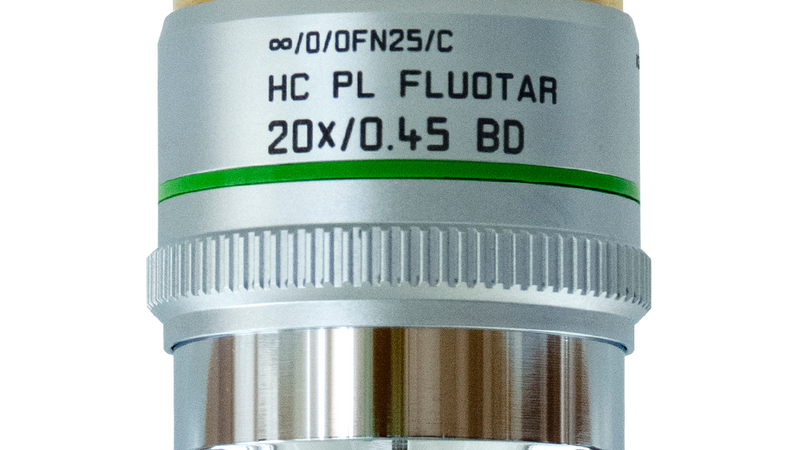

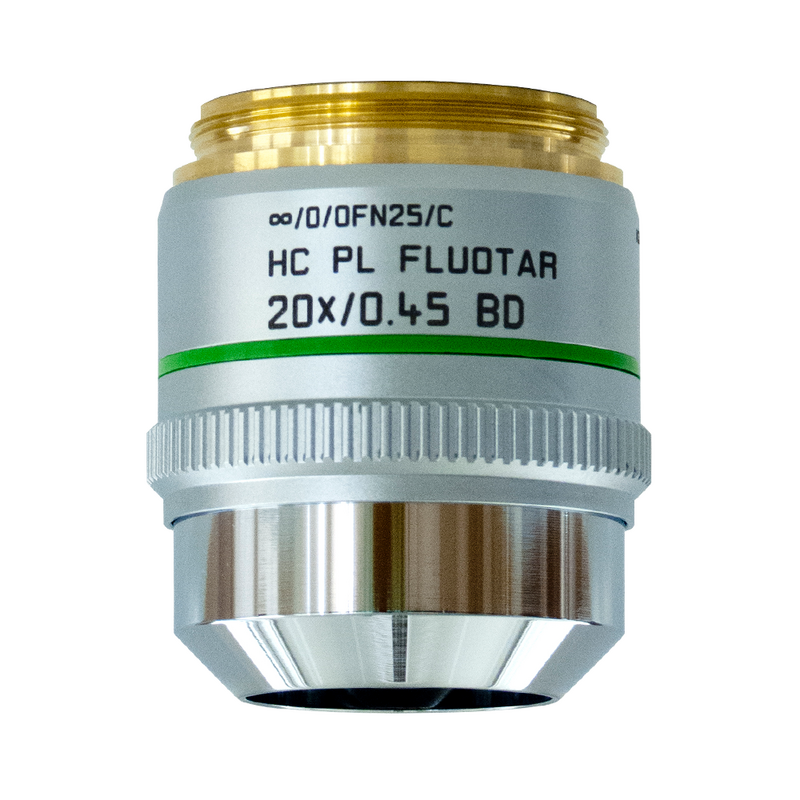

Figure

HC PL FLUOTAR 20x/0,45  BD

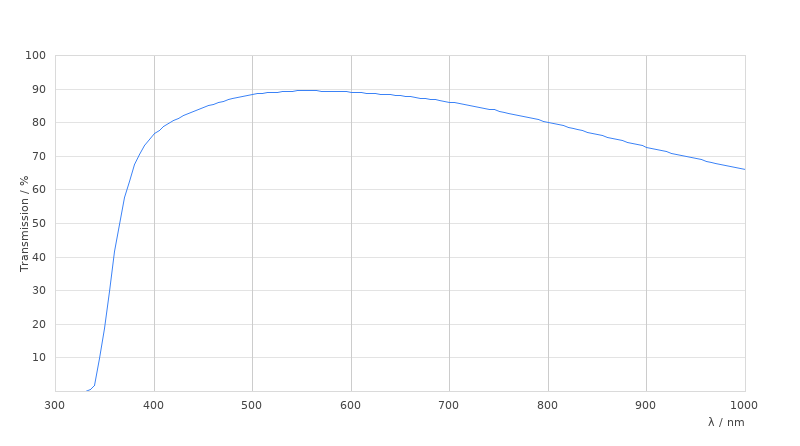

Transmission Curve

HC PL FLUOTAR 20x/0,45  BD

Dimension Sheet

HC PL FLUOTAR 20x/0,45  BD
