Microscope Objective M PL APO MACRO 0.4x/0.014-0.003

<p>Objective M PL APO MACRO 0.4x/0.014-0.003 has a magnification of 0.4X and a numerical aperture of 0.014mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 60mm and a FN of 22.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
M PL APO MACRO 0.4x/0.014-0.003
M PL APO MACRO 0.4x/0.014-0.003
M PL APO MACRO 0.4x/0.014-0.003
M PL APO MACRO 0.4x/0.014-0.003

Technical Specs

Article Number 11581046
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 60
Immersion Dry
Iris Diaphragm 0.003
Magnification 0.4⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.014
Objective Thread M32
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques FSC

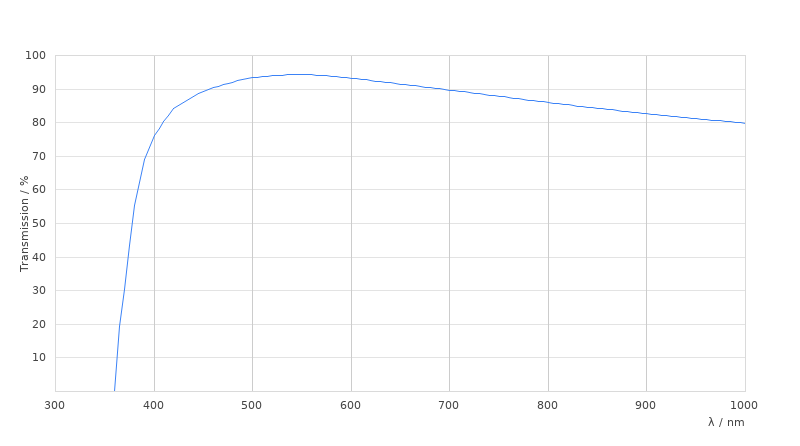

Transmission UV (365nm)
