M PL APO MACRO 1x/0.035-0.006

Article Number 11581047
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 60
Immersion Dry
Iris Diaphragm 0.006
Magnification 1⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.035
Objective Thread M32
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques FSC
Transmission UV (365nm)

Figure

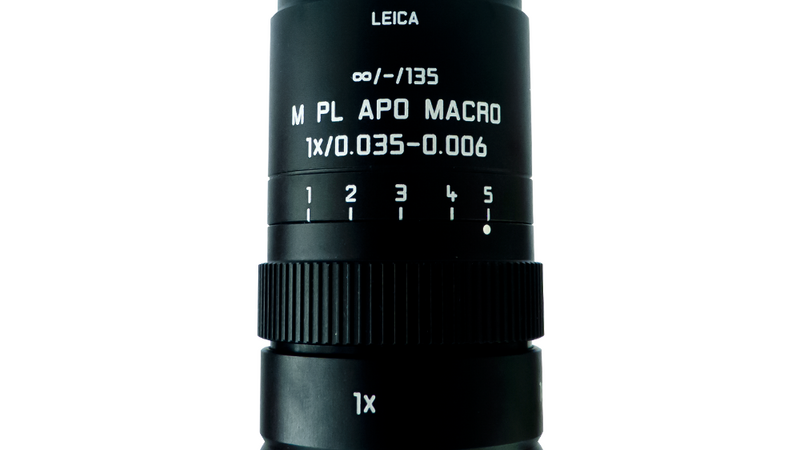

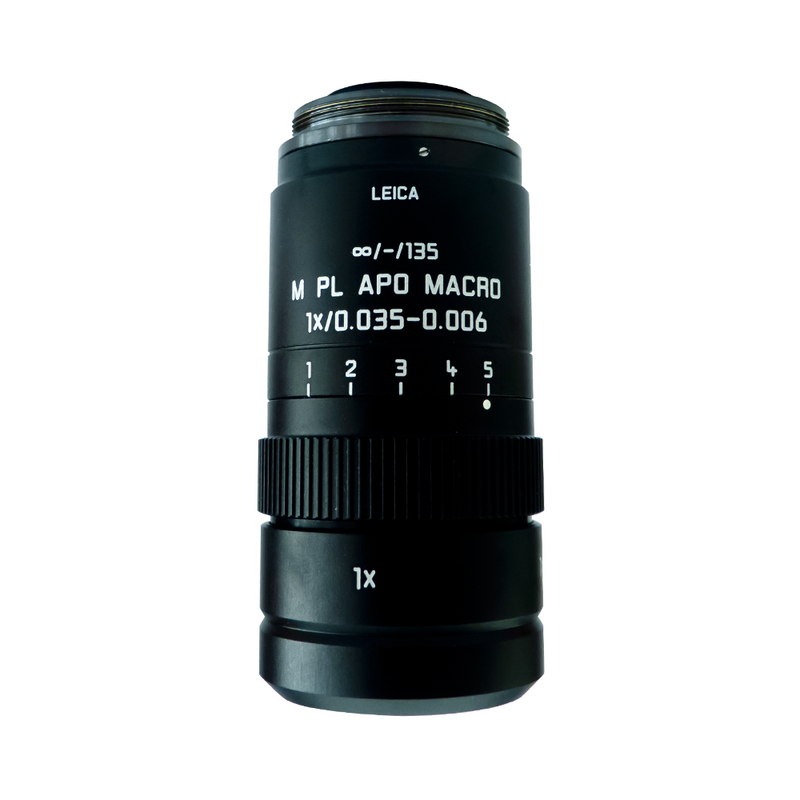

M PL APO MACRO 1x/0.035-0.006
