Microscope Objective M PL APO MACRO 2x/0.07-0.01
Product No. 11581048
Objective M PL APO MACRO 2x/0.07-0.01 has a magnification of 2X and a numerical aperture of 0.07mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 60mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11581048 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 60 |
| Immersion | Dry |
| Iris Diaphragm | 0.01 |
| Magnification | 2⨉ |
| Contrasting Methodes | TL-BF, FLUO |
| Numerical Aperture | 0.07 |
| Objective Thread | M32 |
| Objective Type | PLAN APO |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | FSC |

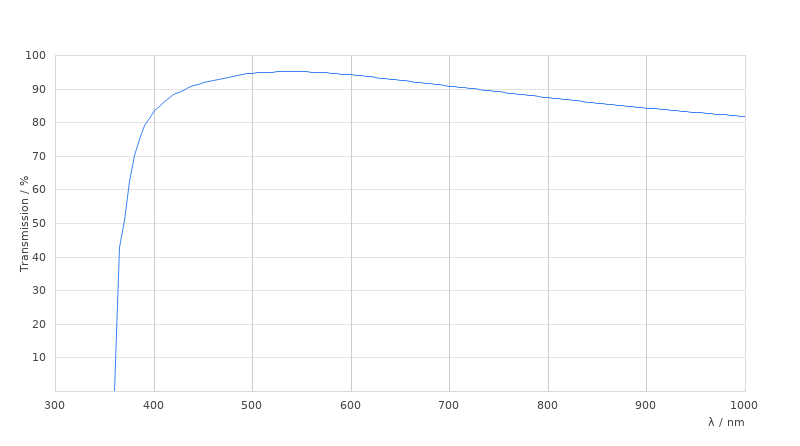

| Transmission | UV (340nm) |
