Microscope Objective M PL APO MACRO 4x/0.14-0.03
<p>Objective M PL APO MACRO 4x/0.14-0.03 has a magnification of 4X and a numerical aperture of 0.14mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 60mm and a FN of 22.</p>
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Article Number | 11581049 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 60 |
| Immersion | Dry |
| Iris Diaphragm | 0.03 |
| Magnification | 4⨉ |
| Contrasting Methodes | TL-BF, FLUO |
| Numerical Aperture | 0.14 |
| Objective Thread | M32 |
| Objective Type | PLAN APO |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | FSC |

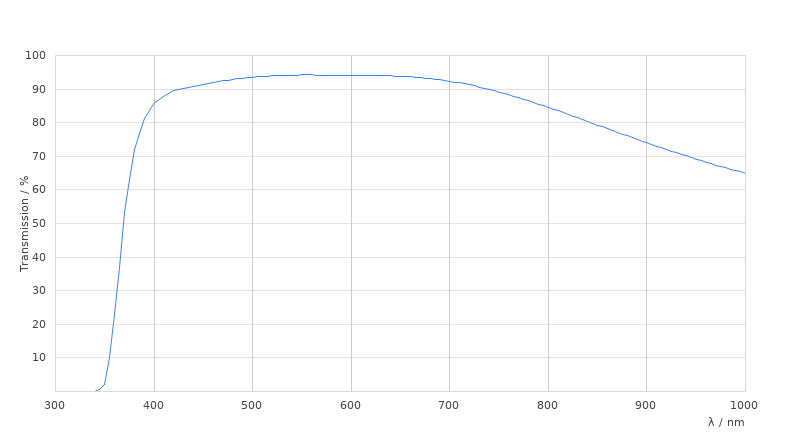

| Transmission | UV (365nm) |
