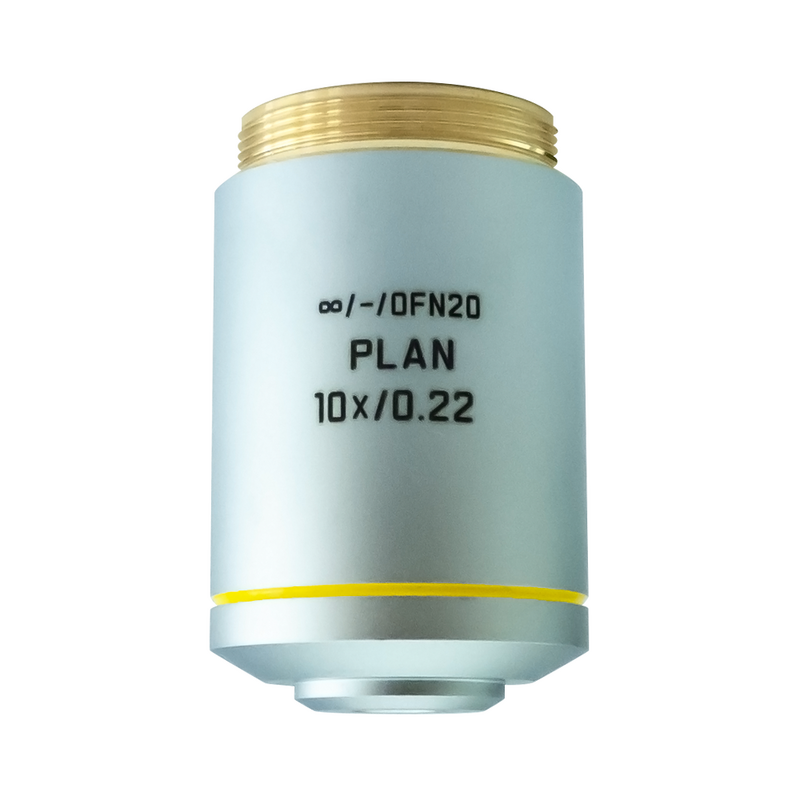

Microscope Objective PLAN 10x/0,22

<p>Objective PLAN 10x/0,22 has a magnification of 10X and a numerical aperture of 0.22mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 7.8mm and a FN of 20.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
PLAN 10x/0,22
PLAN 10x/0,22
PLAN 10x/0,22
PLAN 10x/0,22

Technical Specs

Article Number 13613241
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 7.8
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DF, FLUO
Numerical Aperture 0.22
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission -
