HCX PL APO 150x/0,95

Article Number 11767019
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.2
Immersion Dry
Iris Diaphragm Without
Magnification 150⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.95
Objective Thread RMS
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission -

Figure

HCX PL APO 150x/0,95

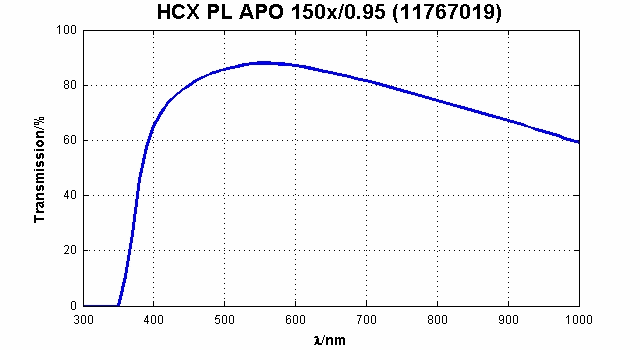

Transmission Curve

HCX PL APO 150x/0,95
