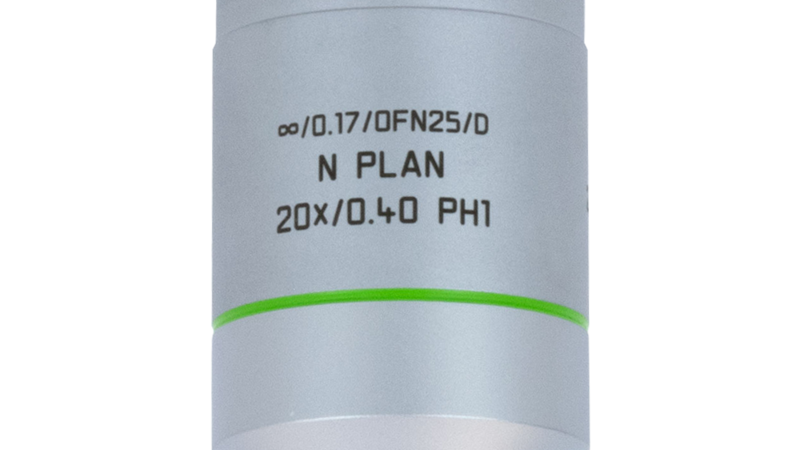

N PLAN 20x/0,40 PH1

Article Number 11506098
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 0.39
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, FLUO
Numerical Aperture 0.4
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques PH1
Transmission UV (340nm)

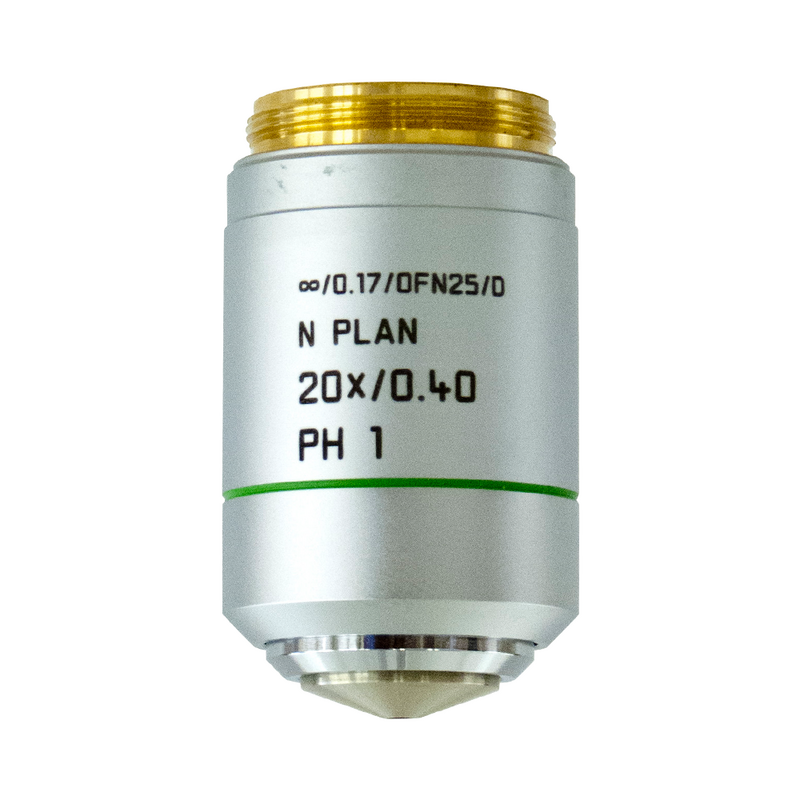

Figure

N PLAN 20x/0,40 PH1

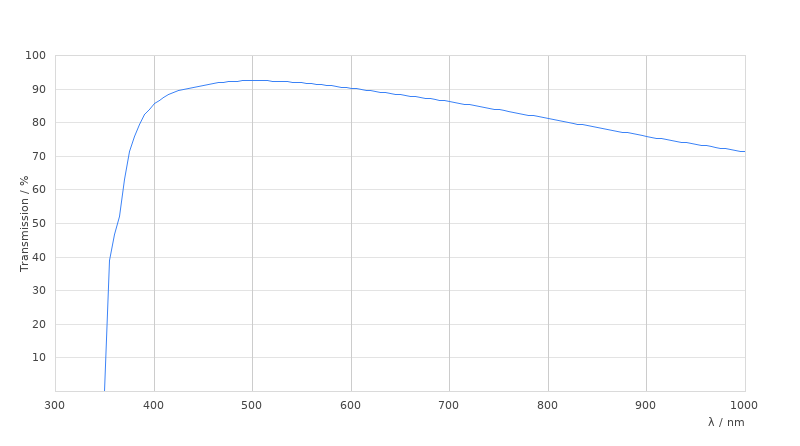

Transmission Curve

N PLAN 20x/0,40 PH1

Dimension Sheet

N PLAN 20x/0,40 PH1
