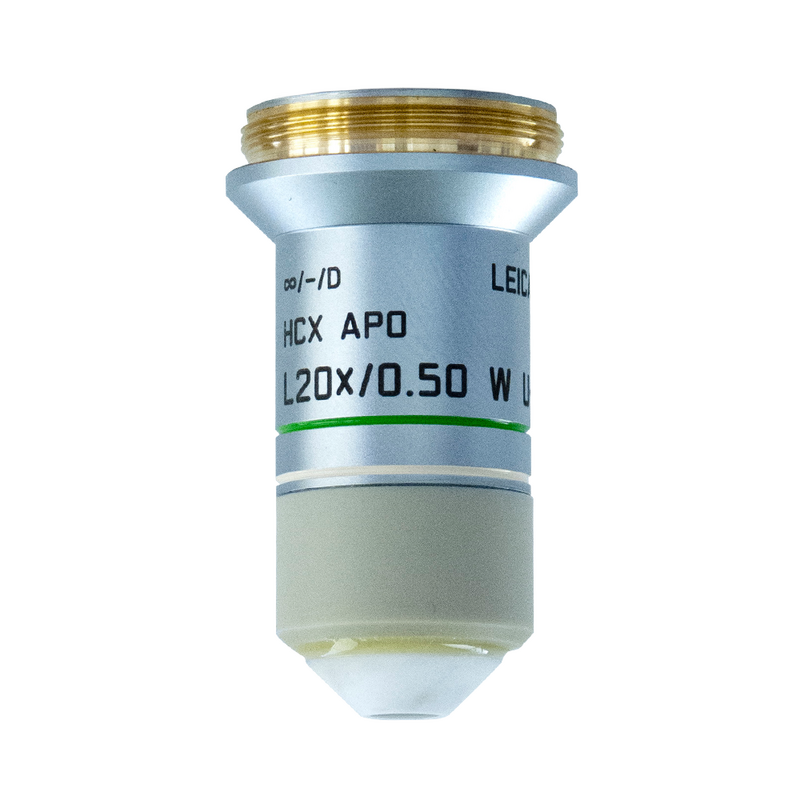

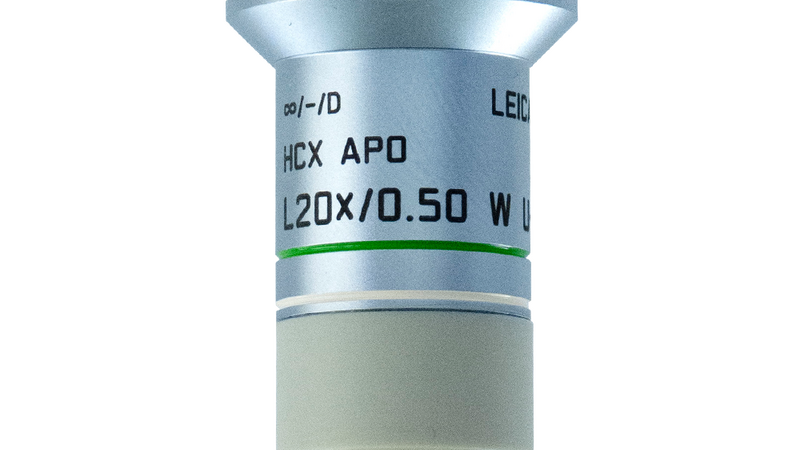

Microscope Objective HC APO L 20x/0,50 W U-V-I
Product No. 11506147
Objective HC APO L 20x/0,50 W U-V-I has a magnification of 20X and a numerical aperture of 0.5mm. For use in water immersion material environment and attached with an objective thread of M25 having a free working distance of 3.5mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11506147 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 3.5 |
| Immersion | Water |
| Iris Diaphragm | Without |
| Magnification | 20⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-DF, FLUO |
| Numerical Aperture | 0.5 |
| Objective Thread | M25 |
| Objective Type | APO |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | Electrophysiology, MP |
| Transmission | UV (340nm) |
