HC APO L 40x/0,80 W U-V-I

Article Number 11506155
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 3.3
Immersion Water
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.8
Objective Thread M25
Objective Type APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques Electrophysiology, MP
Transmission UV (340nm)

Figure

HC APO L 40x/0,80 W U-V-I

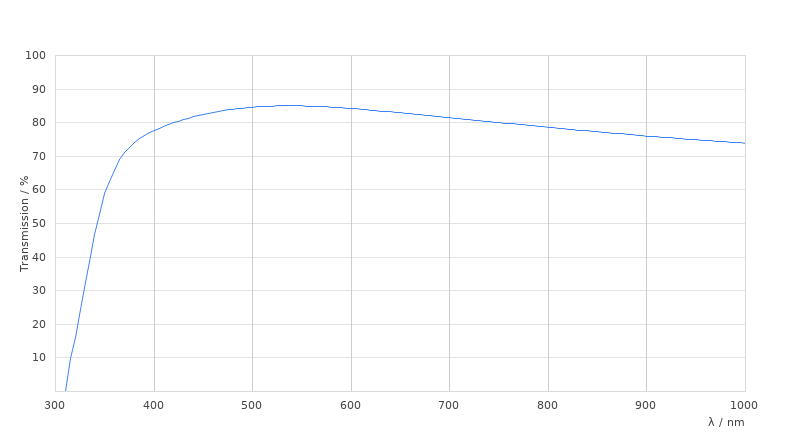

Transmission Curve

HC APO L 40x/0,80 W U-V-I

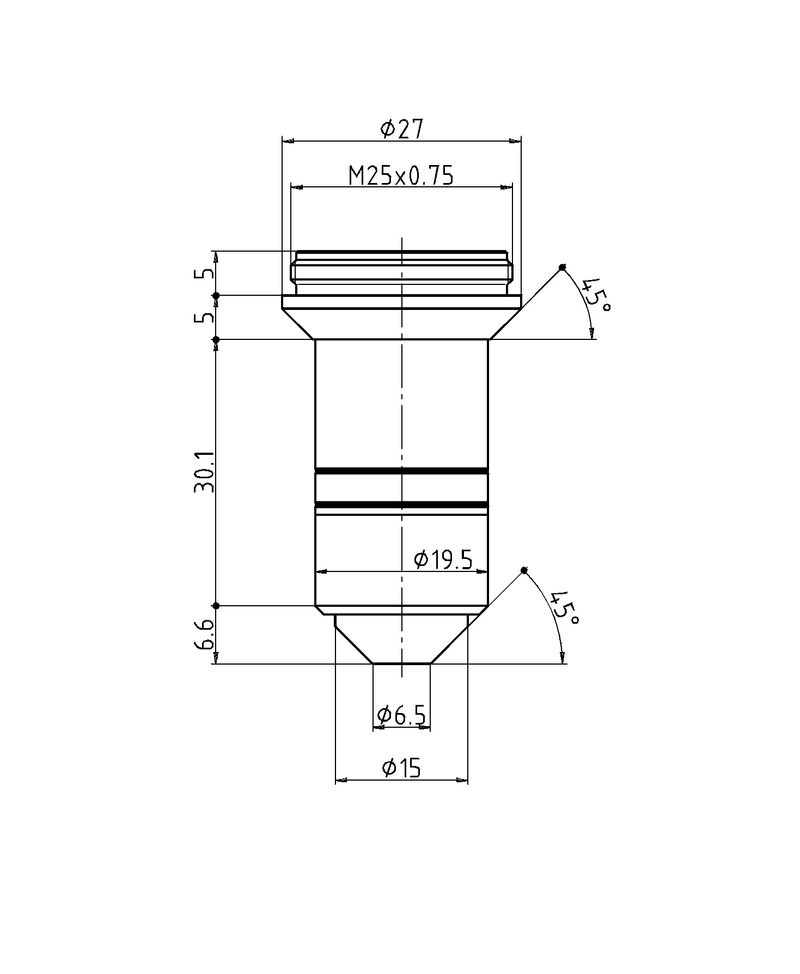

Dimension Sheet

HC APO L 40x/0,80 W U-V-I
