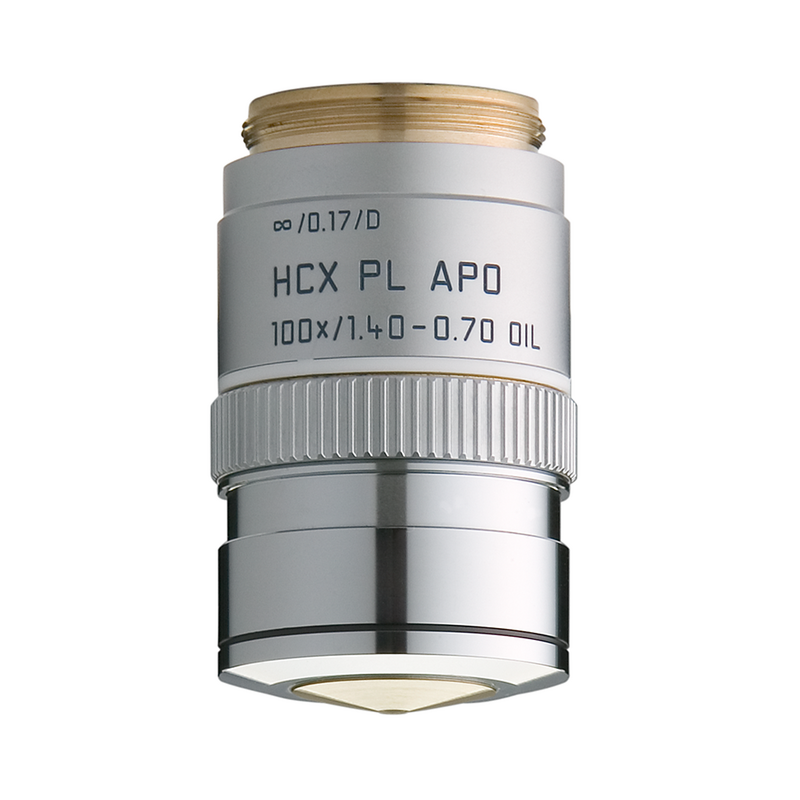

HC PL APO 100x/1,40-0,70 OIL

HC PL APO 100x/1,40-0,70 OIL
Numerical Aperture 1.4
Suitable for AFC (Adaptive Focus Control) YES
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field of View (FOV in mm) 25
Immersion OIL
Iris Diaphragm 0.7
Spring Loaded YES

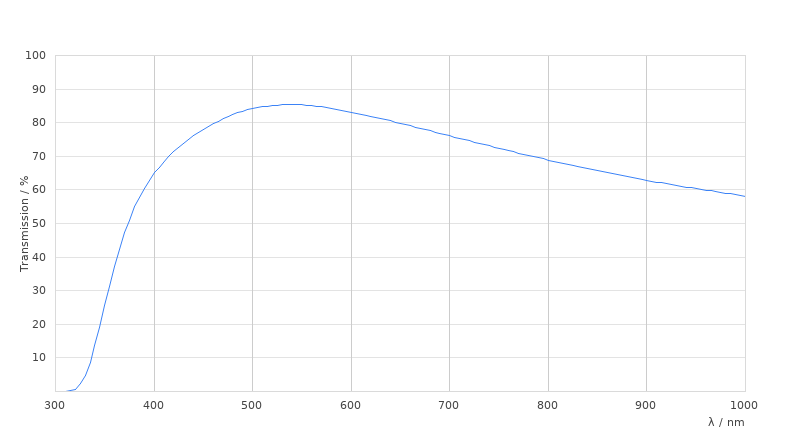

Transmission UV (340nm)
Magnification 100

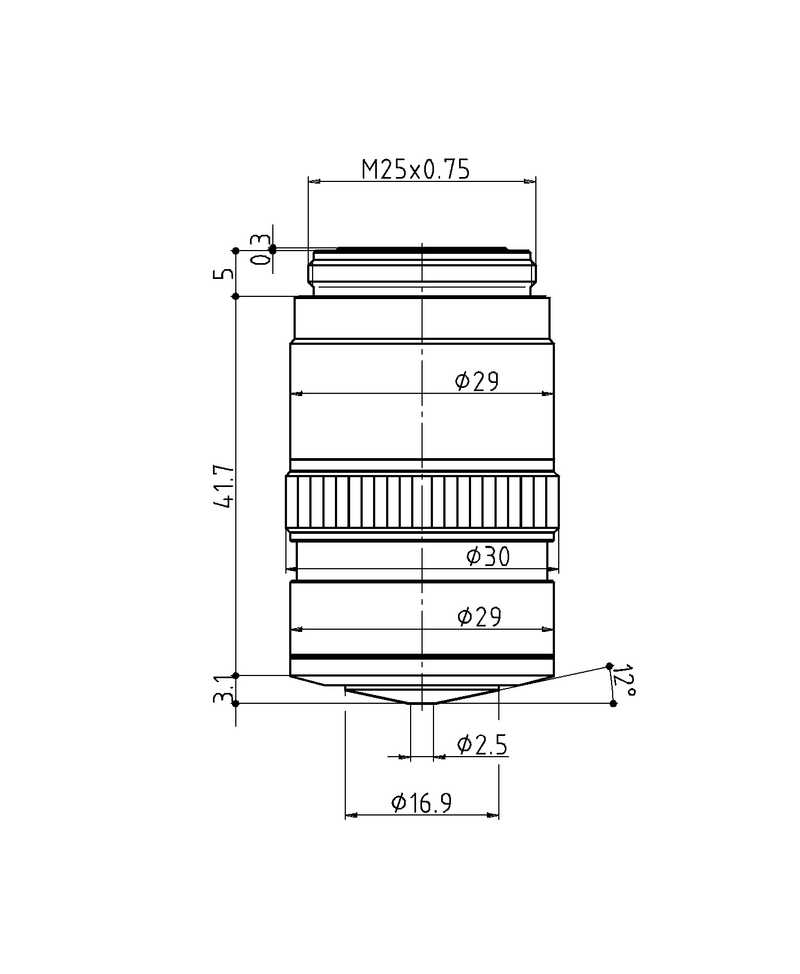

Objective Thread M25
Free Working Distance (WD in mm)0.09
Objective Type PLAN APO
Article Number 11506220
