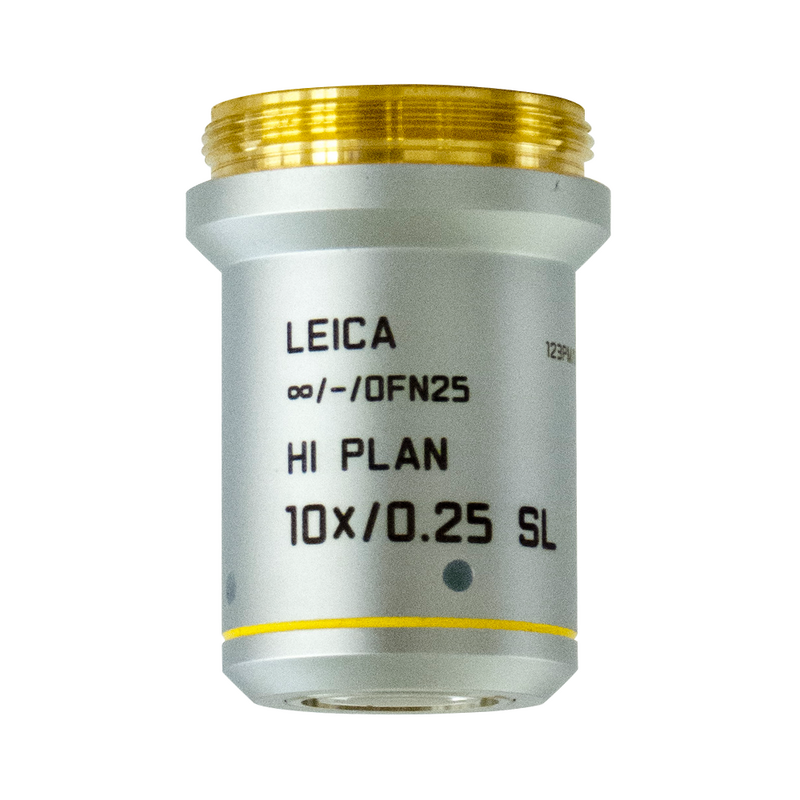

HI PLAN 10x/0,25 SL

HI PLAN 10x/0,25 SL
Numerical Aperture 0.25
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field of View (FOV in mm) 20
Immersion DRY
Iris Diaphragm 0
Spring Loaded NO
Transmission -
Magnification 10
Objective Thread M25
Free Working Distance (WD in mm)12
Objective Type HI PLAN
Article Number 11506229
