HC PL FLUOTAR L 20x/0,40 CORR

Article Number 11506242
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 7.5-6.2
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.4
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques LMD
Transmission UV (340nm)

Figure

HC PL FLUOTAR L 20x/0,40 CORR

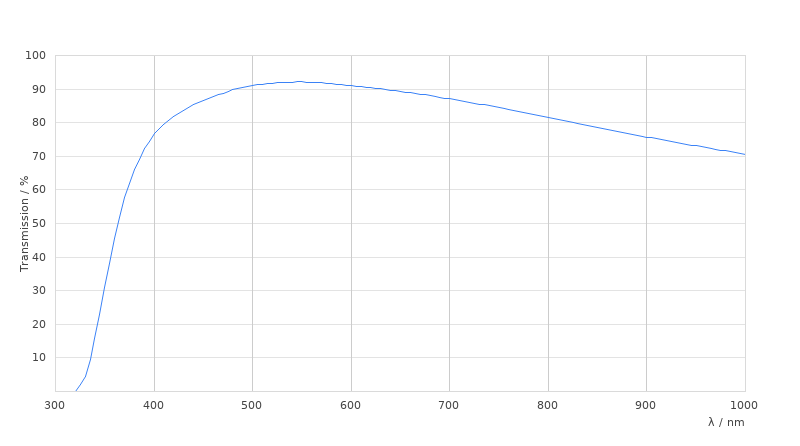

Transmission Curve

HC PL FLUOTAR L 20x/0,40 CORR

Dimension Sheet

HC PL FLUOTAR L 20x/0,40 CORR
