HI PLAN I 20x/0,30 PH1

Article Number 11506272
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 3
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-PH, FLUO
Numerical Aperture 0.3
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques PH1
Transmission -

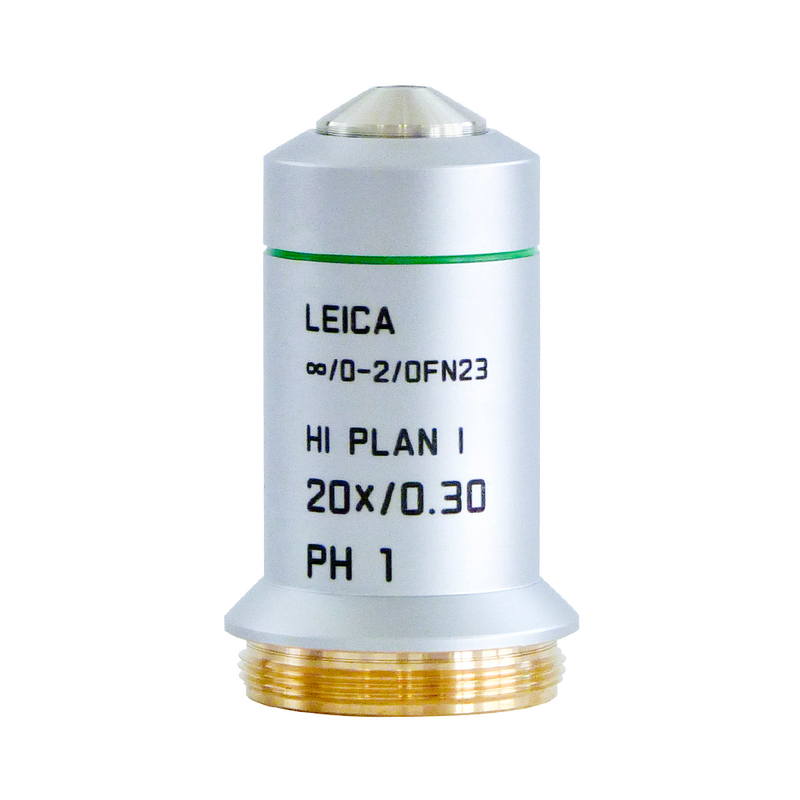

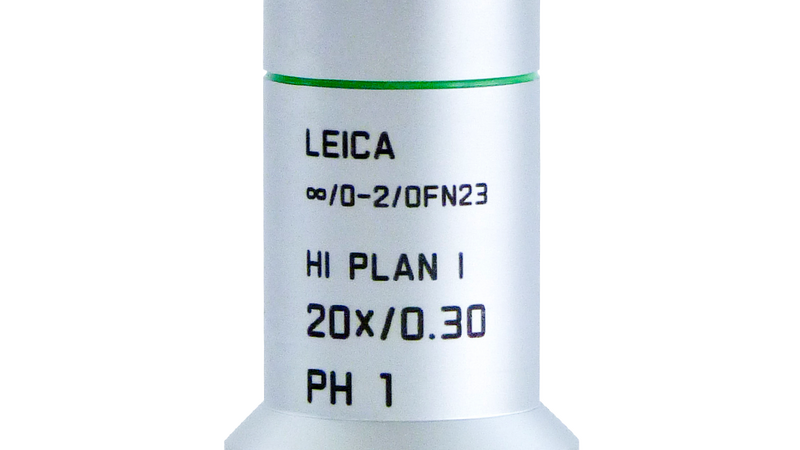

Figure

HI PLAN I 20x/0,30 PH1

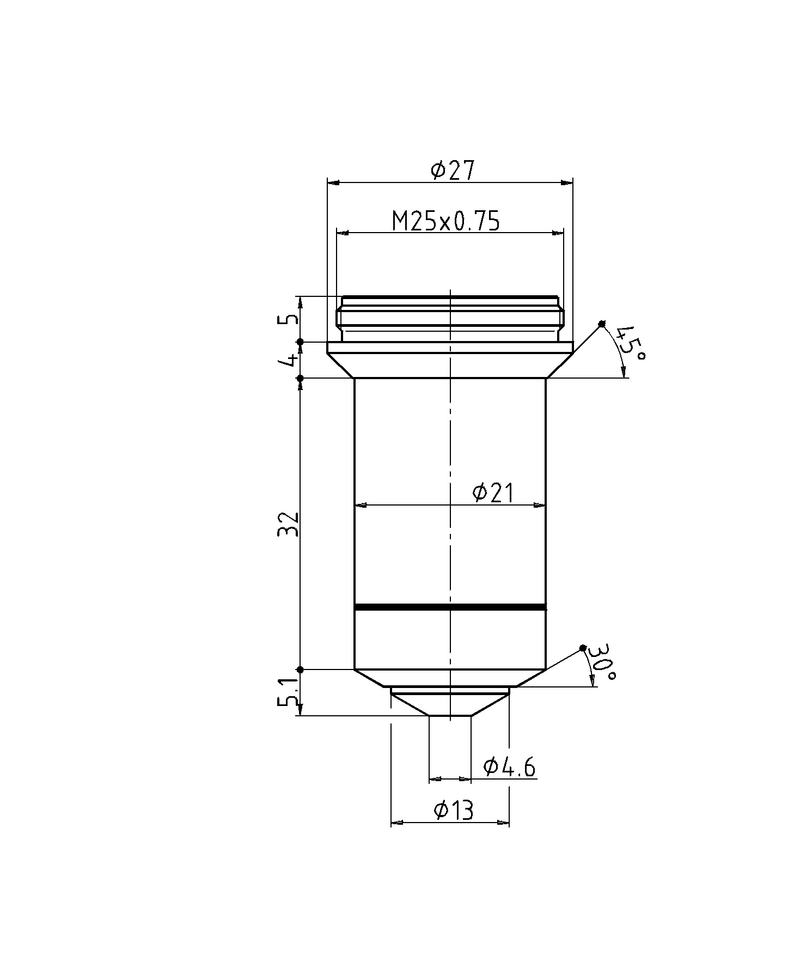

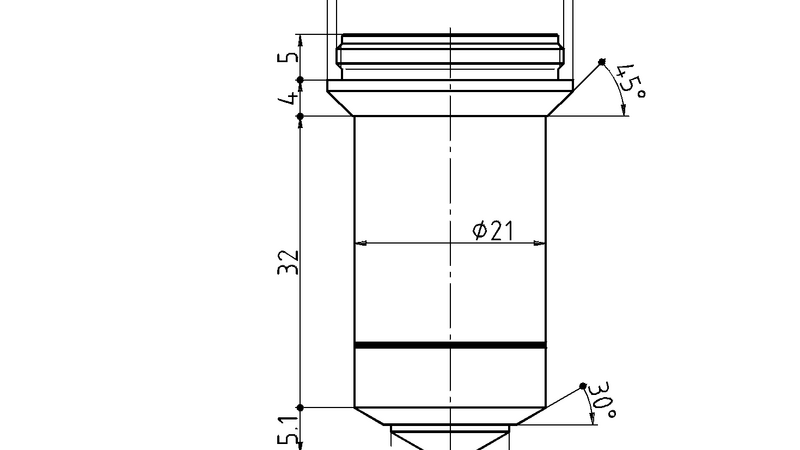

Dimension Sheet

HI PLAN I 20x/0,30 PH1
