N PLAN L 40x/0,55 CORR

Article Number 11506297
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism C
Field Number (FN) 22
Free Working Distance (WD in mm) 3.3 - 1.9
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.55
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques
Transmission UV (340nm)

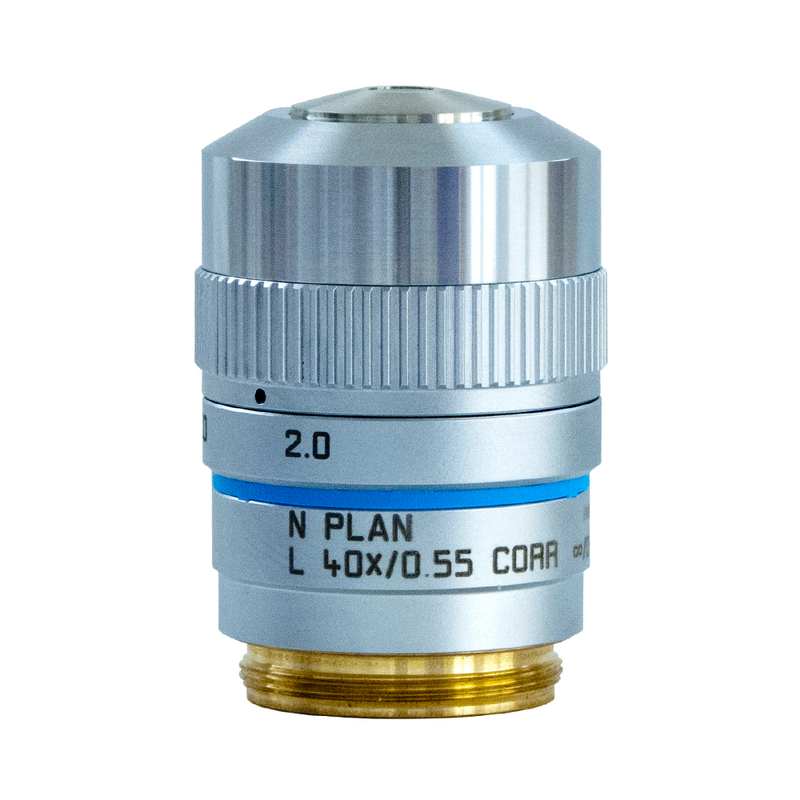

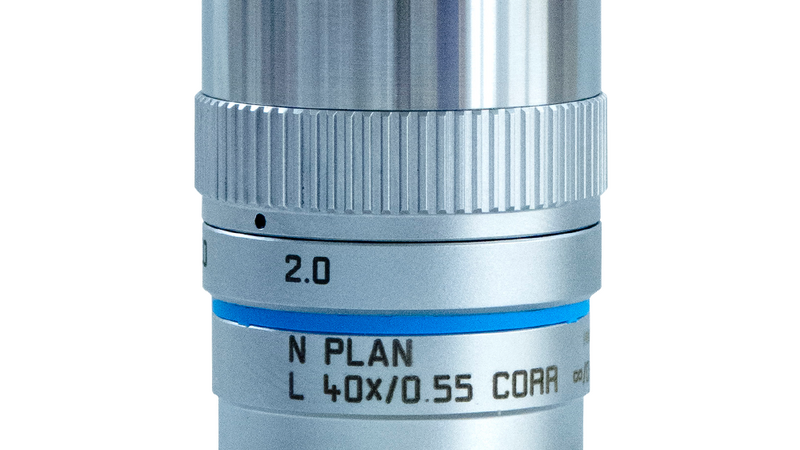

Figure

N PLAN L 40x/0,55 CORR

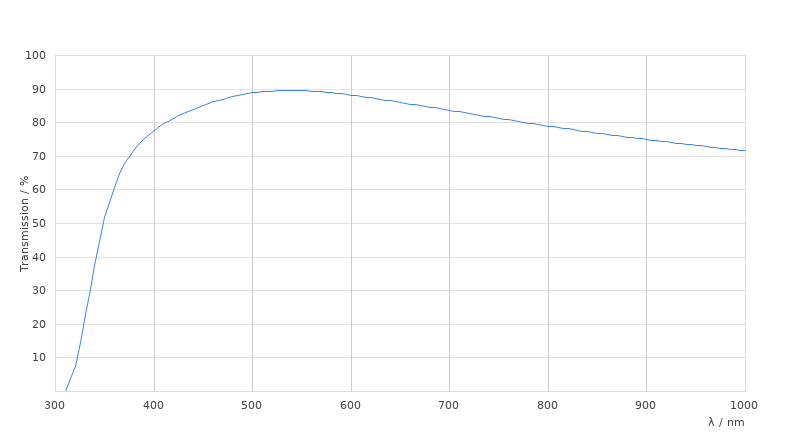

Transmission Curve

N PLAN L 40x/0,55 CORR

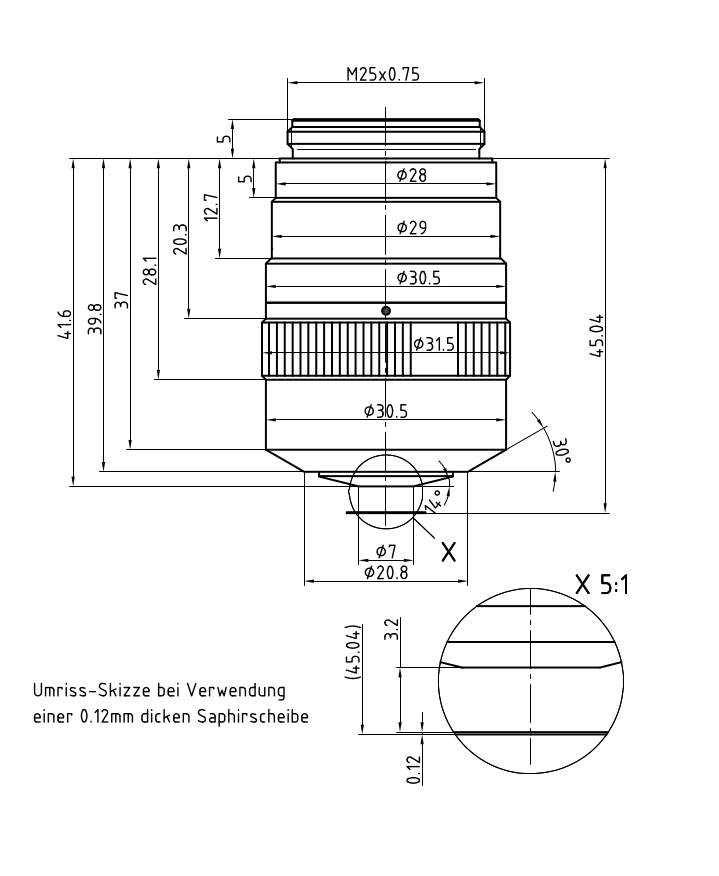

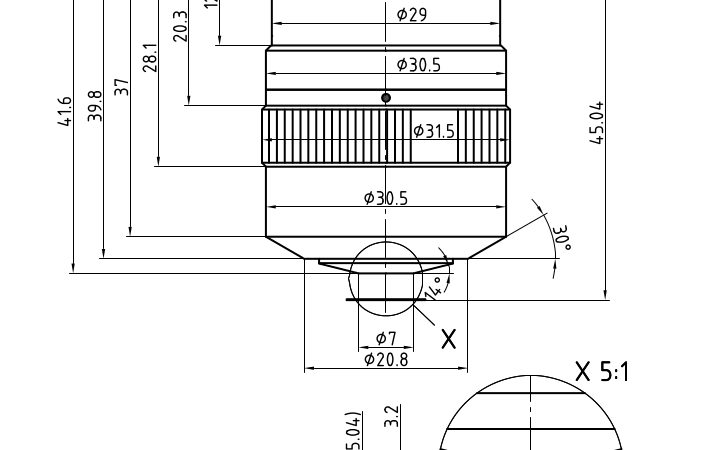

Dimension Sheet

N PLAN L 40x/0,55 CORR
