N PLAN L 40x/0,55 CORR PH2

Article Number 11506298
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism C
Field Number (FN) 22
Free Working Distance (WD in mm) 3.3 - 1.9
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, TL-IMC, FLUO
Numerical Aperture 0.55
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques PH2
Transmission UV (340nm)

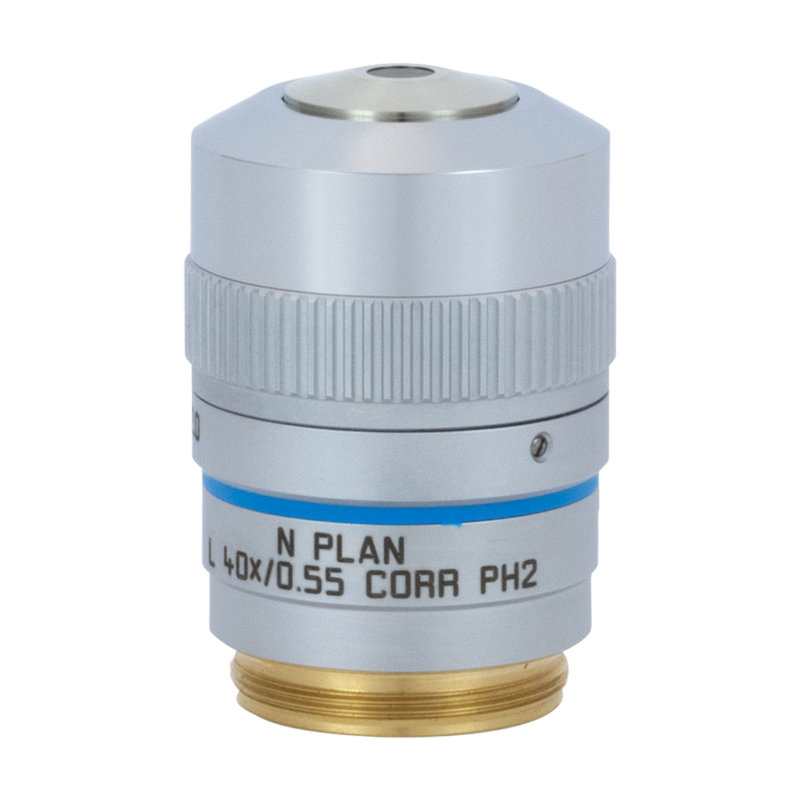

Figure

N PLAN L 40x/0,55 CORR PH2

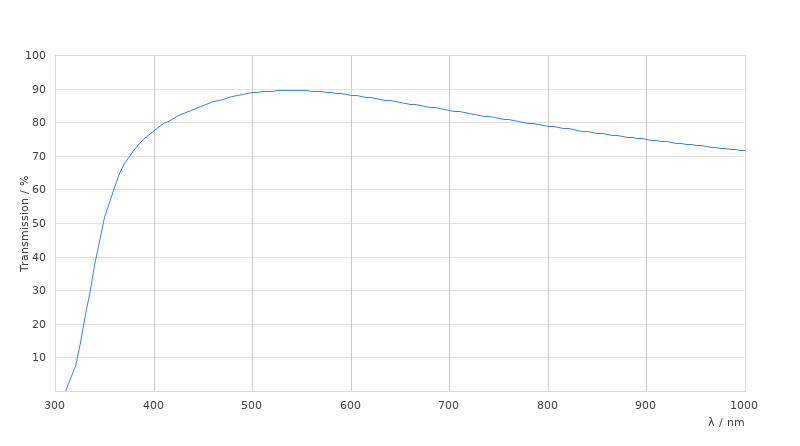

Transmission Curve

N PLAN L 40x/0,55 CORR PH2
