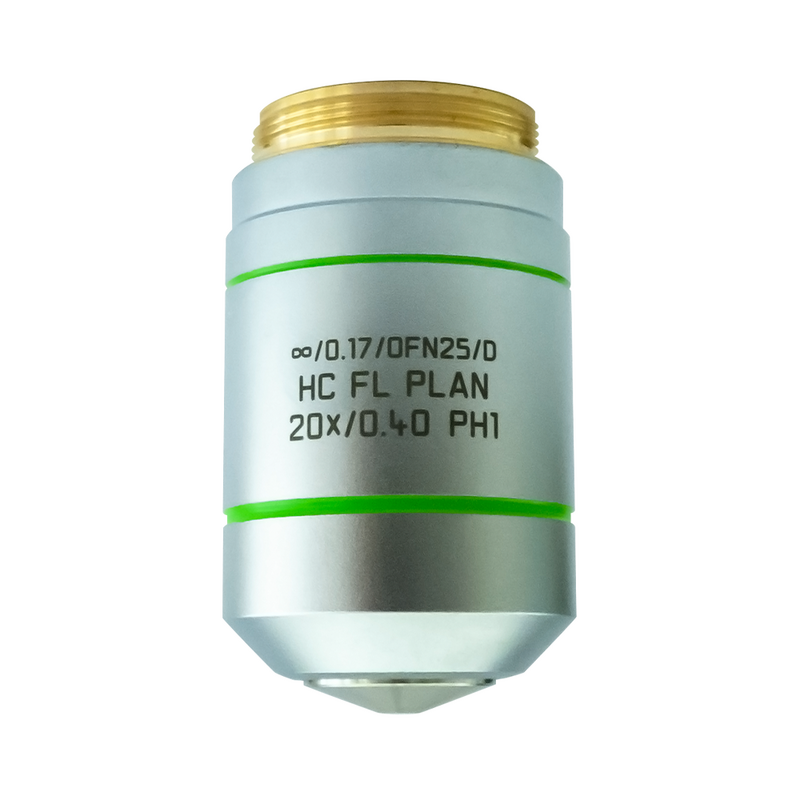

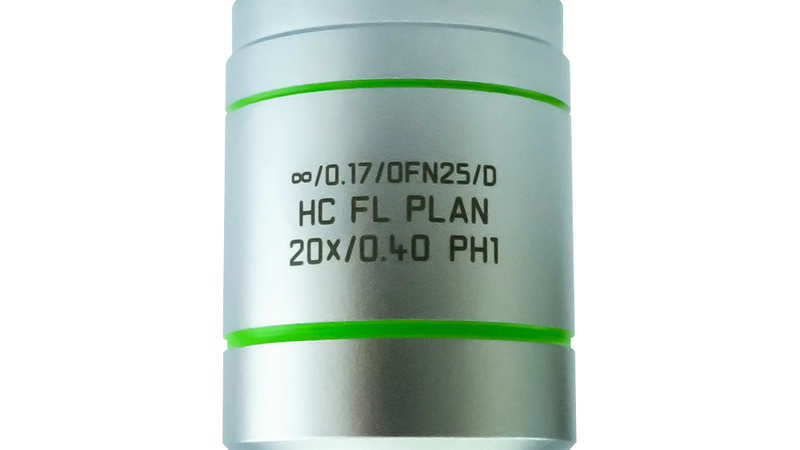

HC FL PLAN 20x/0,40 PH1

HC FL PLAN 20x/0,40 PH1
Numerical Aperture 0.4
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field of View (FOV in mm) 25
Immersion DRY
Iris Diaphragm 0
Spring Loaded YES

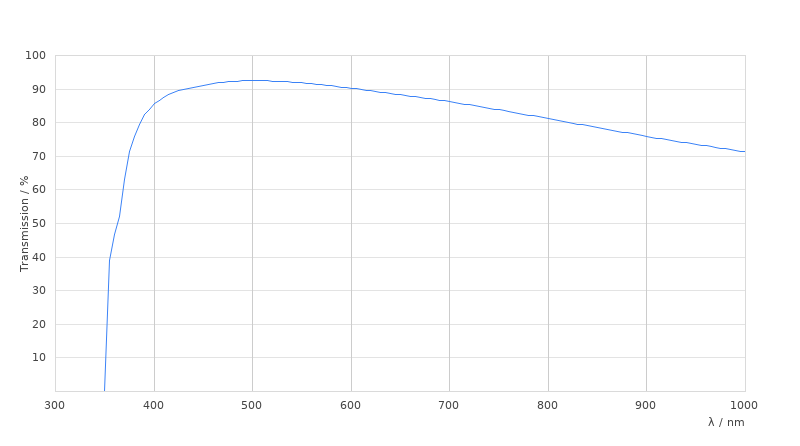

Transmission UV (340nm)
Magnification 20
Objective Thread M25
Free Working Distance (WD in mm)0.39
Objective Type FL PLAN
Article Number 11506309
