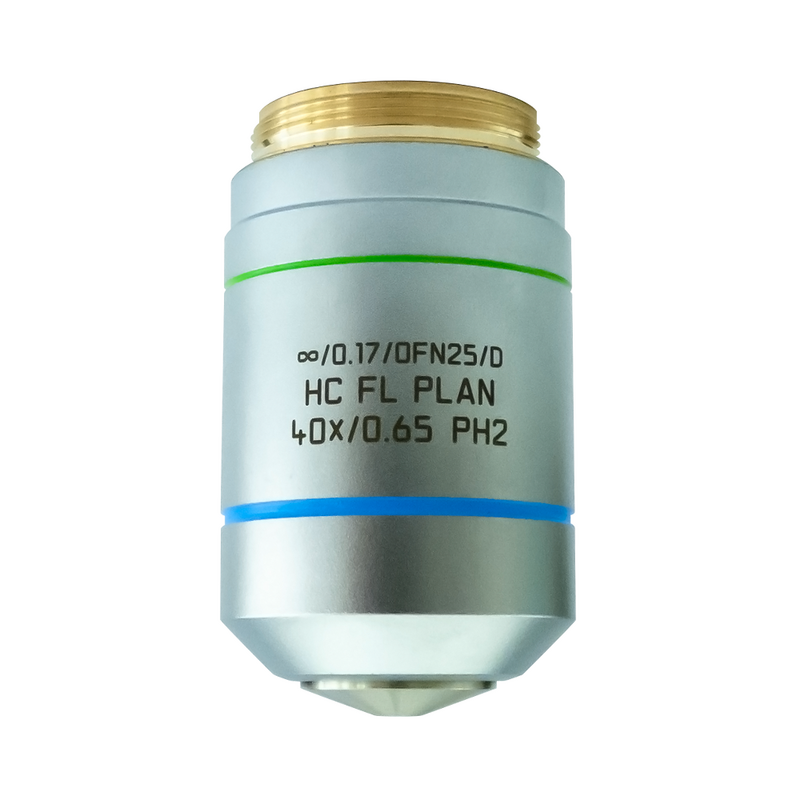

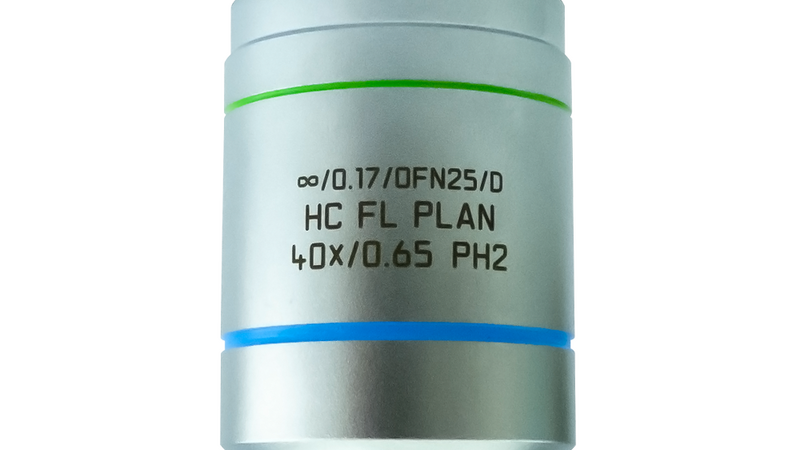

Microscope Objective HC FL PLAN 40x/0,65 PH2

Objective HC FL PLAN 40x/0,65 PH2 has a magnification of 40X and a numerical aperture of 0.65mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.36mm and a FN of 25.

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC FL PLAN 40x/0,65 PH2
HC FL PLAN 40x/0,65 PH2
HC FL PLAN 40x/0,65 PH2
HC FL PLAN 40x/0,65 PH2
HC FL PLAN 40x/0,65 PH2
HC FL PLAN 40x/0,65 PH2

Technical Specs

Article Number 11506311
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.36
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, FLUO
Numerical Aperture 0.65
Objective Thread M25
Objective Type FL PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques PH2

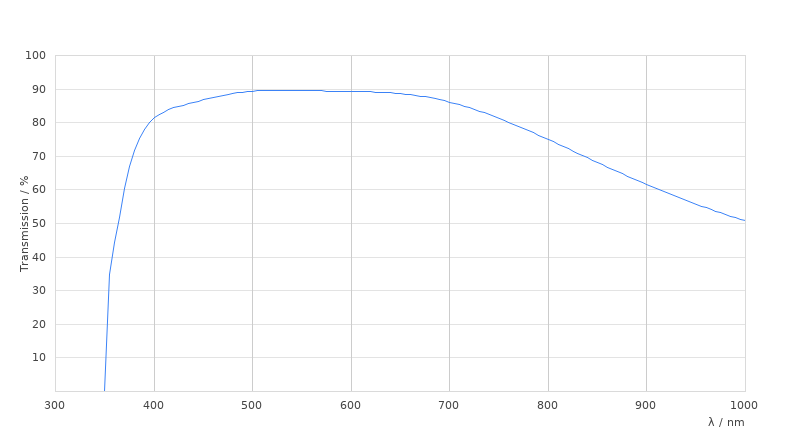

Transmission -
