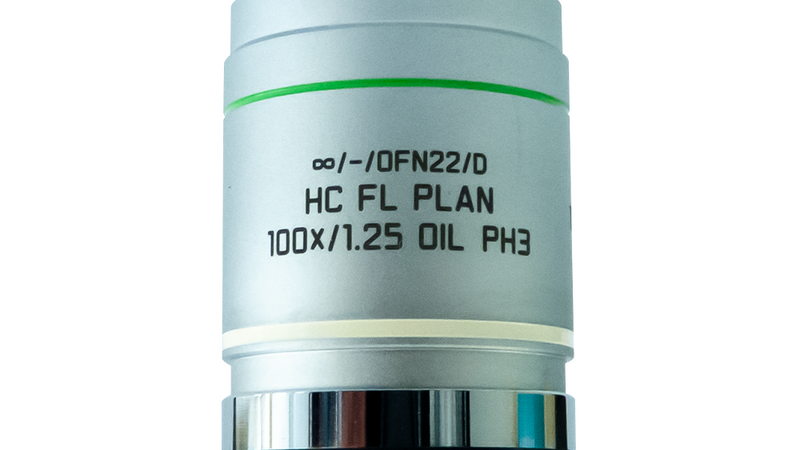

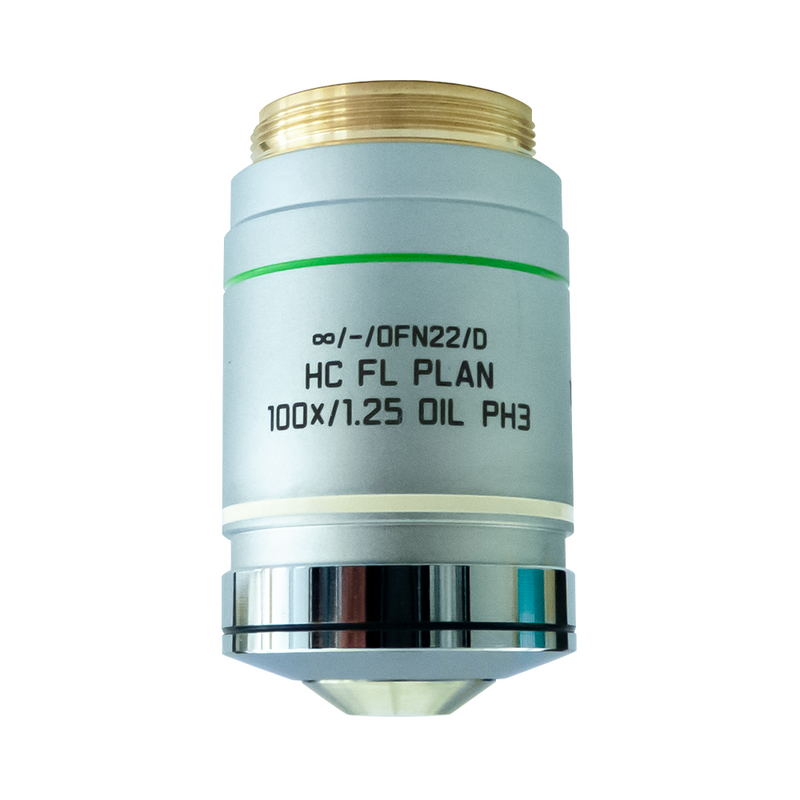

Microscope Objective HC FL PLAN 100x/1,25 OIL PH3
Product No. 11506313
Objective HC FL PLAN 100x/1,25 OIL PH3 has a magnification of 100X and a numerical aperture of 1.25mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.13mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11506313 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 0.13 |
| Immersion | Oil |
| Iris Diaphragm | Without |
| Magnification | 100⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-PH, FLUO |
| Numerical Aperture | 1.25 |
| Objective Thread | M25 |
| Objective Type | FL PLAN |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | PH3 |

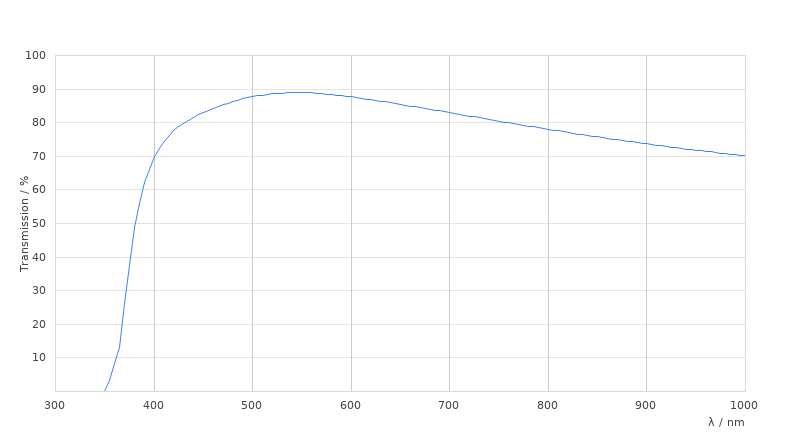

| Transmission | UV (365nm) |
