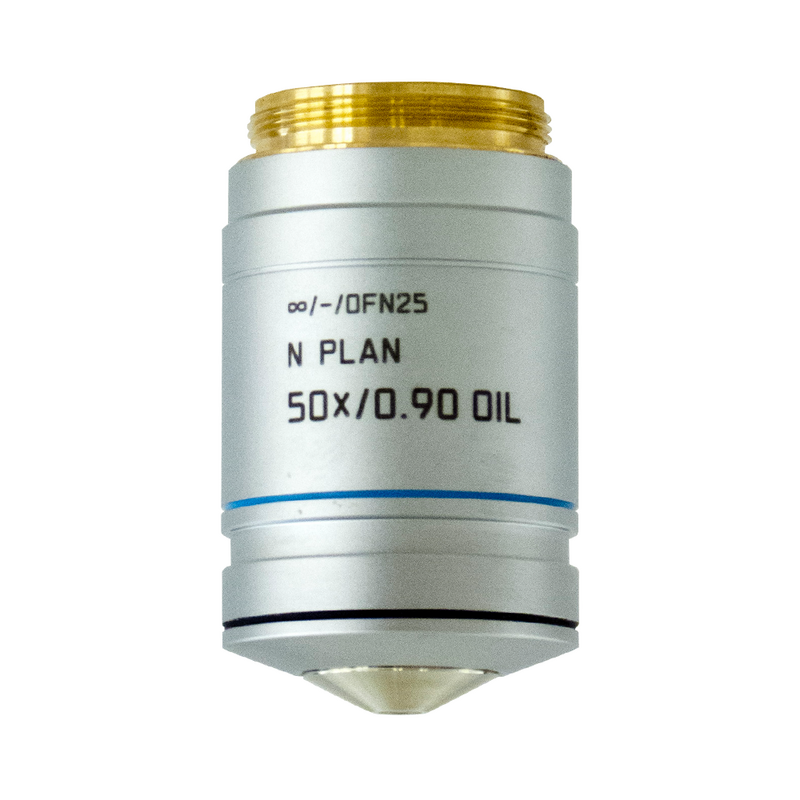

N PLAN 50x/0,90 OIL

N PLAN 50x/0,90 OIL
Numerical Aperture 0.9
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field of View (FOV in mm) 22
Immersion OIL
Iris Diaphragm 0
Spring Loaded YES

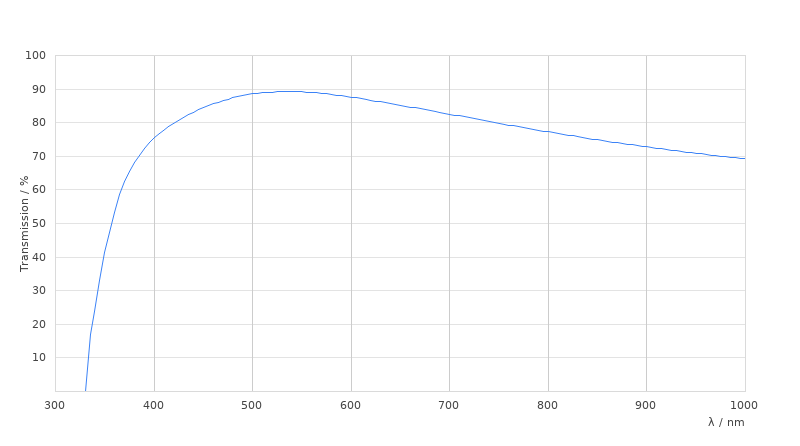

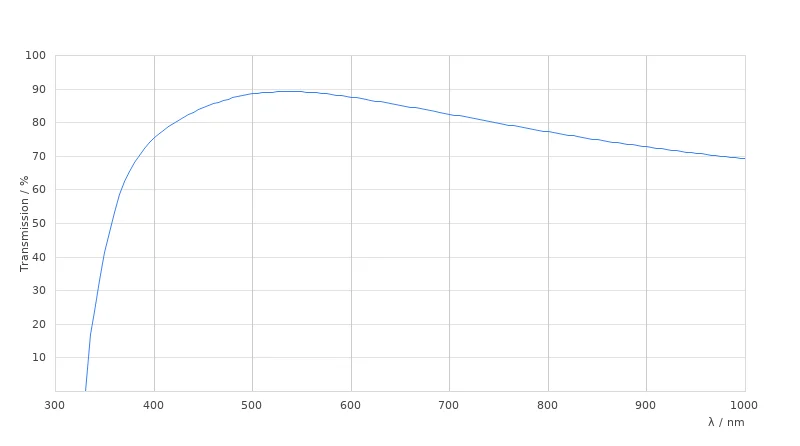

Transmission UV (365nm)
Magnification 50
Objective Thread M25
Free Working Distance (WD in mm)0.14
Objective Type N PLAN
Article Number 11506321
