HC PL IRAPO 20x/0,75 W | |
|---|---|
 | |
| Numerical Aperture | 0.75 |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field of View (FOV in mm) | 25 |
| Immersion | WATER |
| Iris Diaphragm | 0 |
| Spring Loaded | YES |

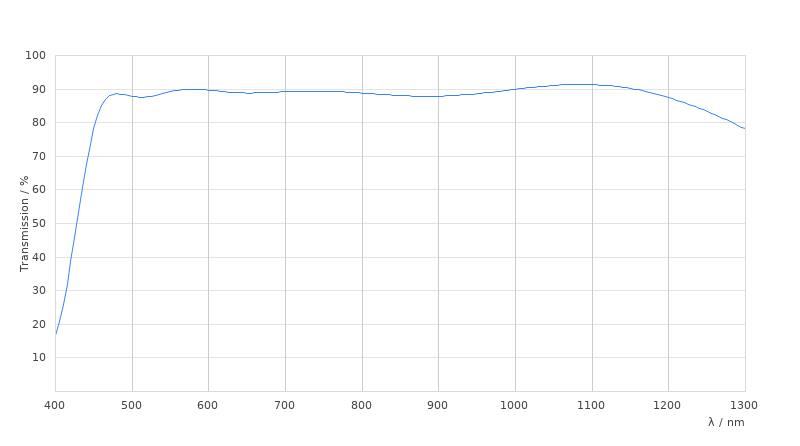

| Transmission | IR (up to 1300nm) |
| Magnification | 20 |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.67 |
| Objective Type | PLAN APO |
| Article Number | 11506344 |
