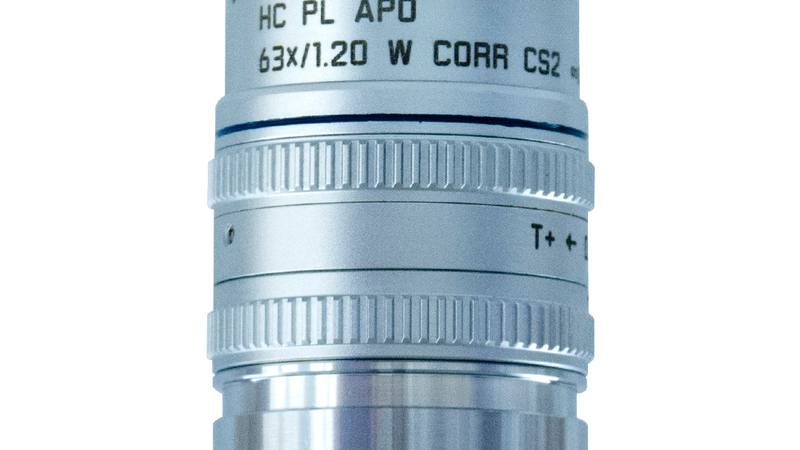

Microscope Objective HC PL APO 63x/1,20 W CORR CS2
Product No. 11506346
Objective HC PL APO 63x/1,20 W CORR CS2 has a magnification of 63X and a numerical aperture of 1.2mm. For use in water immersion material environment and attached with an objective thread of M25 having a free working distance of 0.30mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11506346 |
|---|---|
| Correction Ring (CORR) | CORR |
| Coverglass | With |
| Exit Pupil Position/DIC prism | E |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 0.30 |
| Immersion | Water |
| Iris Diaphragm | Without |
| Magnification | 63⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, FLUO |
| Numerical Aperture | 1.2 |
| Objective Thread | M25 |
| Objective Type | PLAN APO |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | CS2, Waterdispenser |
| Transmission | UV (365nm) |
