HC APO L 63x/0,90 W U-V-I CS2

Article Number 11506362
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 2.2
Immersion Water
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.9
Objective Thread M25
Objective Type HC APO L U-V-I CS2
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques CS2, Electrophysiology, MP
Transmission UV (340nm)

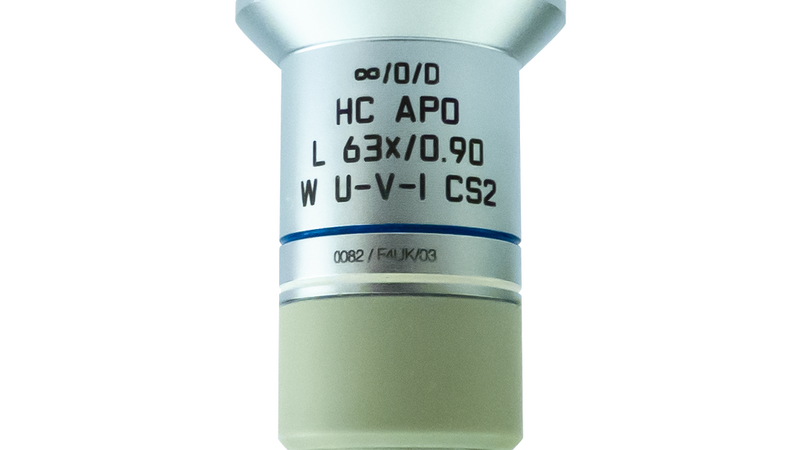

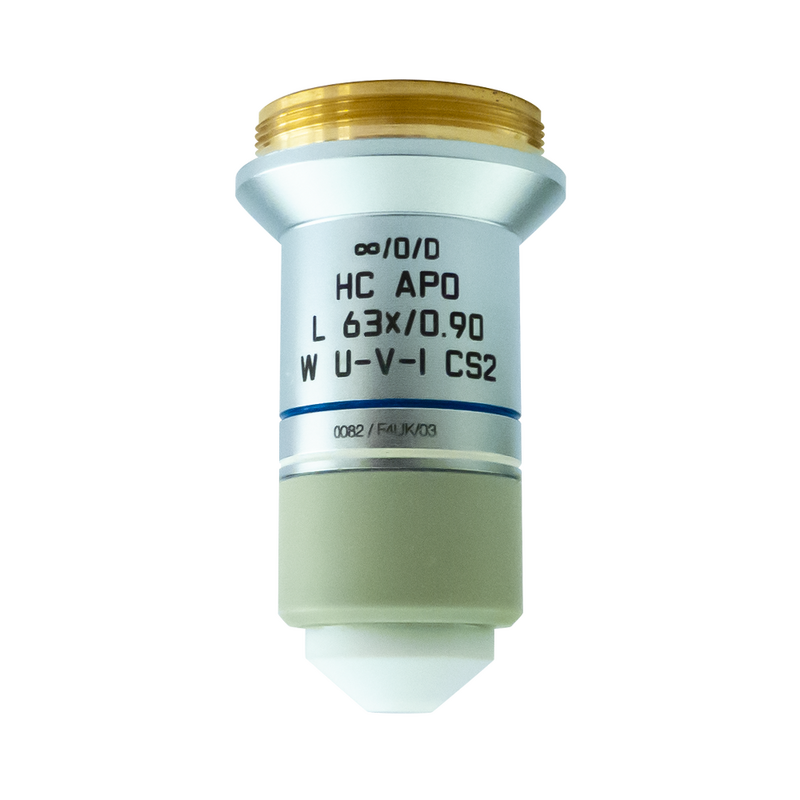

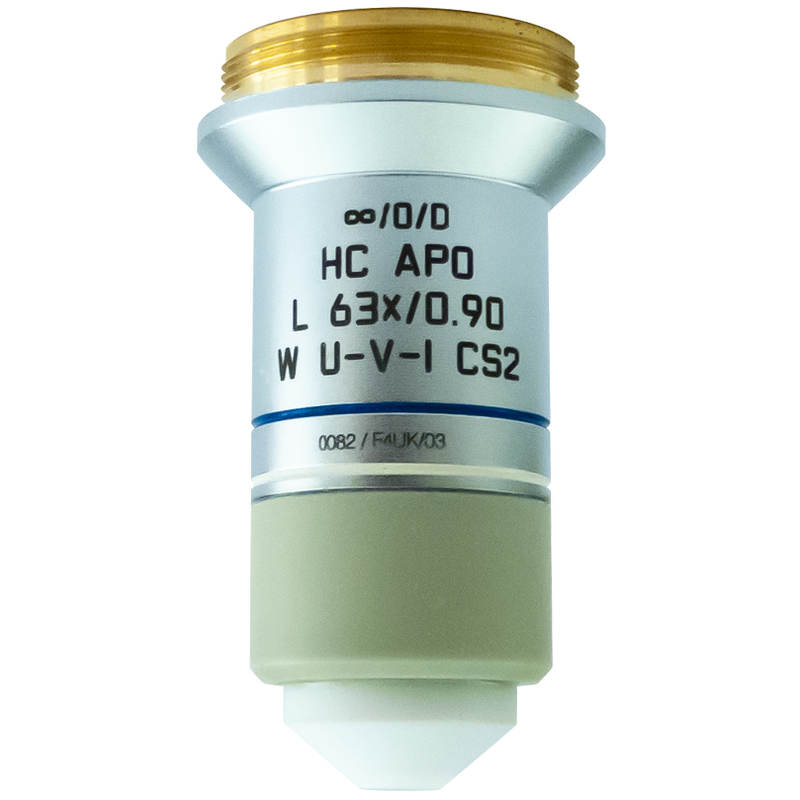

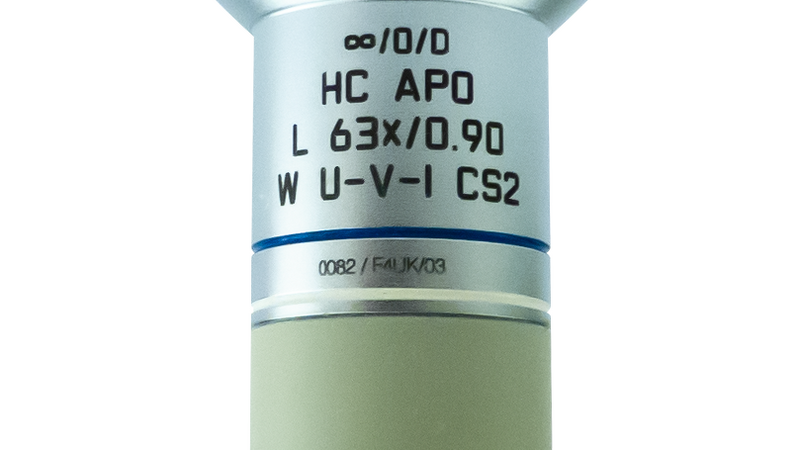

Figure

HC APO L 63x/0,90 W U-V-I CS2

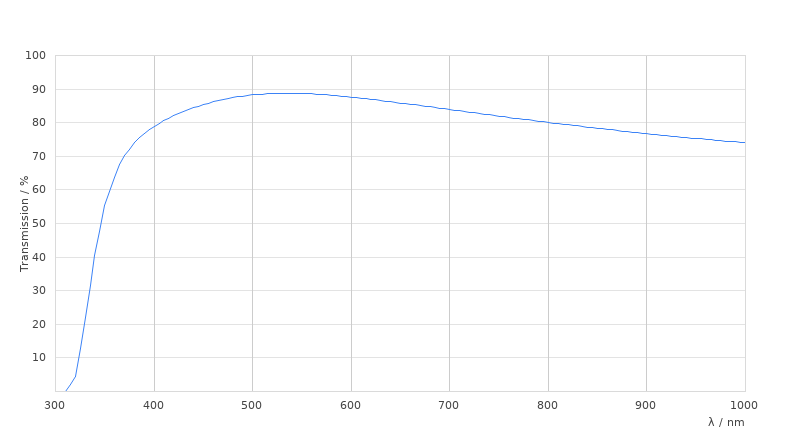

Transmission Curve

HC APO L 63x/0,90 W U-V-I CS2

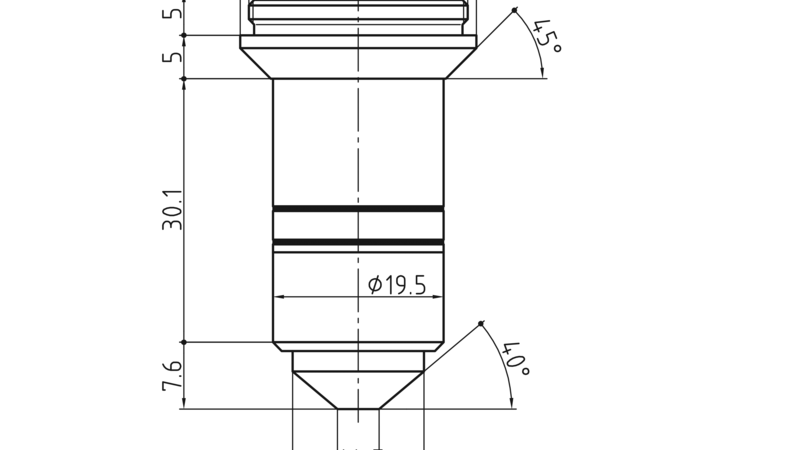

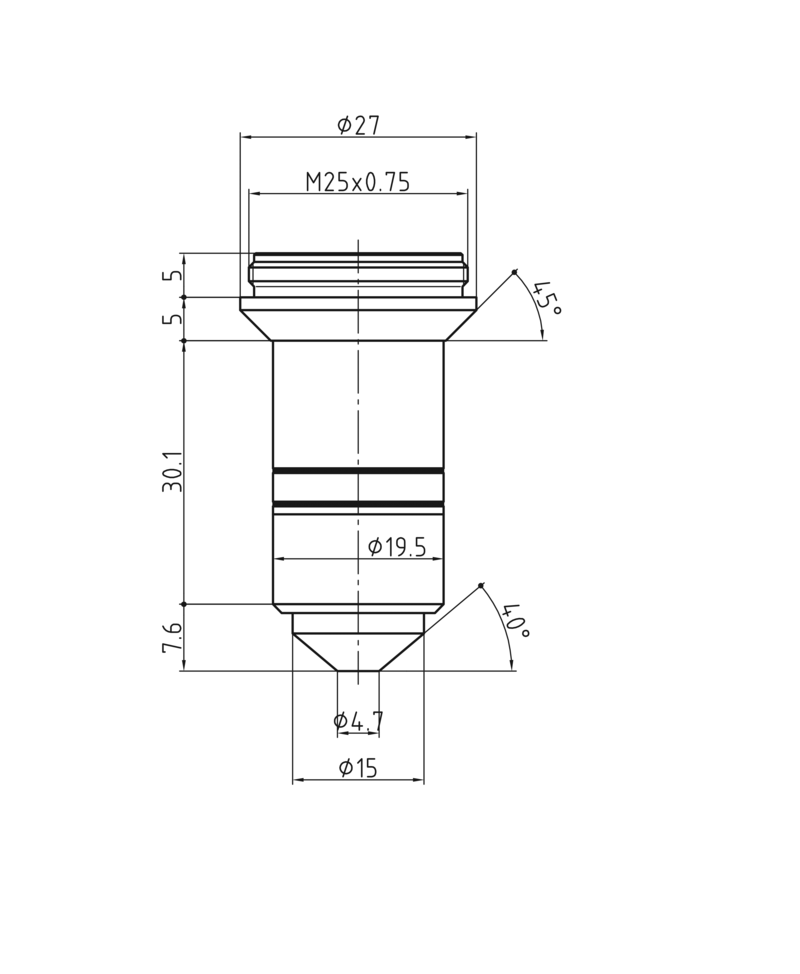

Dimension Sheet

HC APO L 63x/0,90 W U-V-I CS2
