HC FLUOTAR (340) 100x/1,30 OIL

Article Number 11506368
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 12
Free Working Distance (WD in mm) 0.14
Immersion Oil
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.3
Objective Thread M25
Objective Type HC FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques Fura, LMD
Transmission UV (340nm)

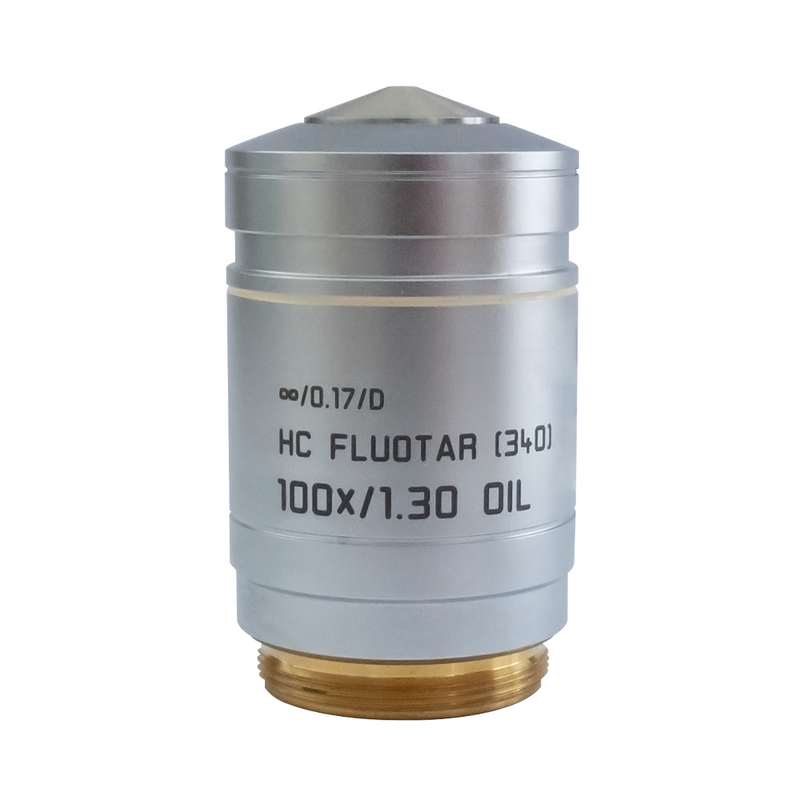

Figure

HC FLUOTAR (340) 100x/1,30 OIL

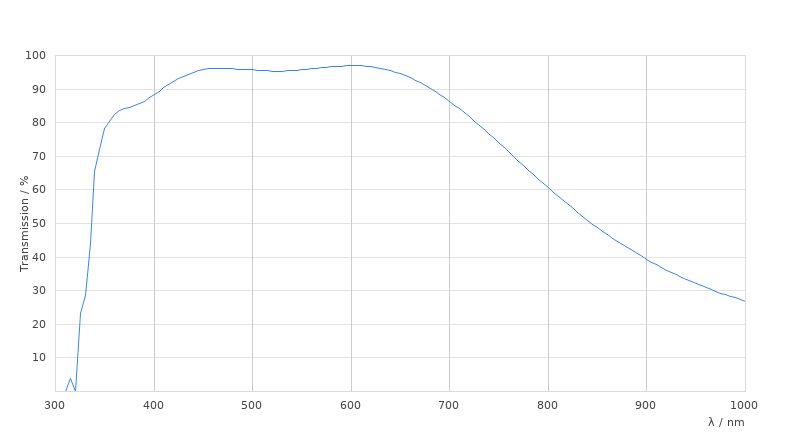

Transmission Curve

HC FLUOTAR (340) 100x/1,30 OIL

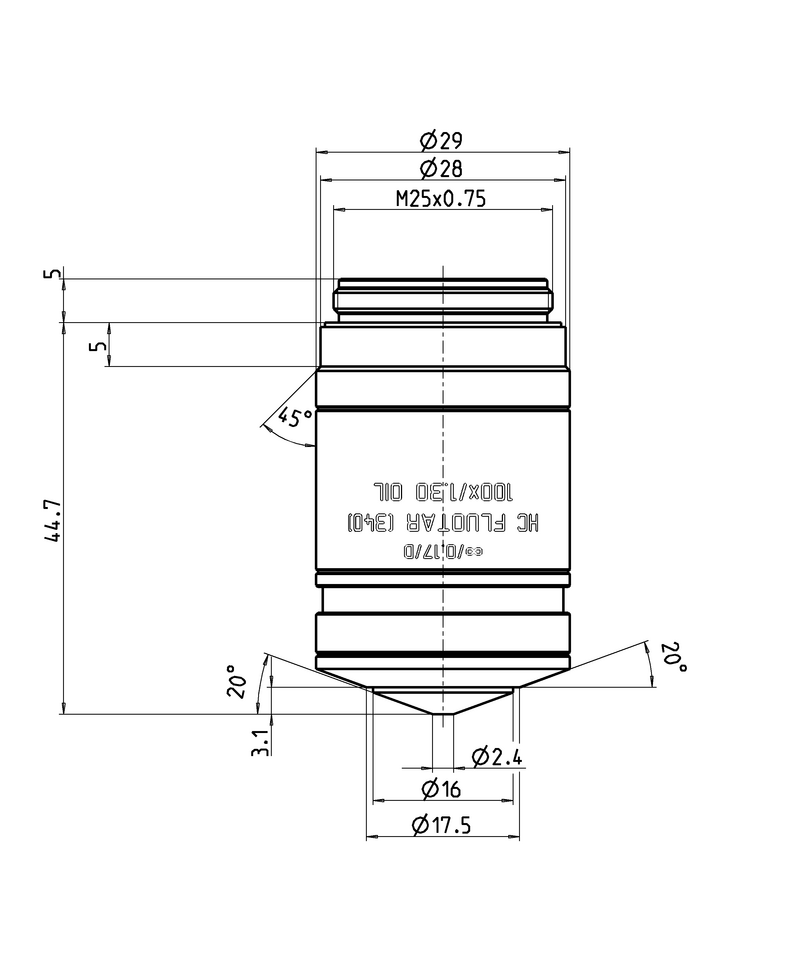

Dimension Sheet

HC FLUOTAR (340) 100x/1,30 OIL
