HC PL FLUOTAR (340) 20x/0,80 OIL

Article Number 11506371
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.19
Immersion Oil
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.8
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques Ablation, Fura
Transmission UV (340nm)

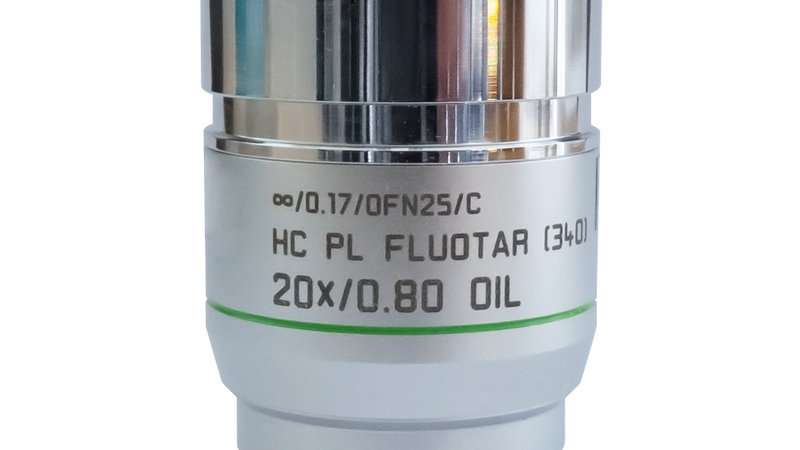

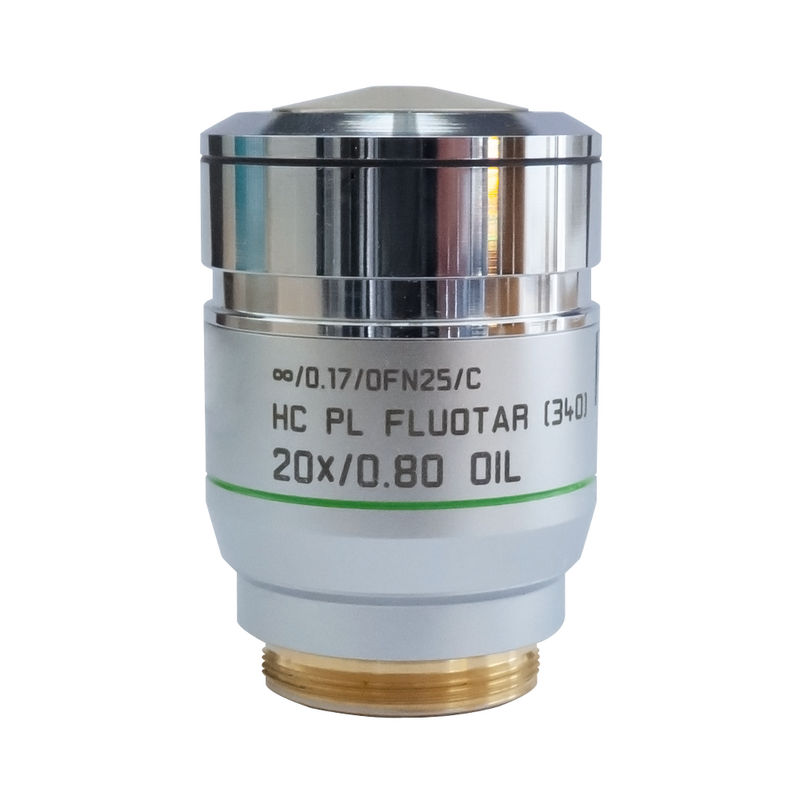

Figure

HC PL FLUOTAR (340) 20x/0,80 OIL

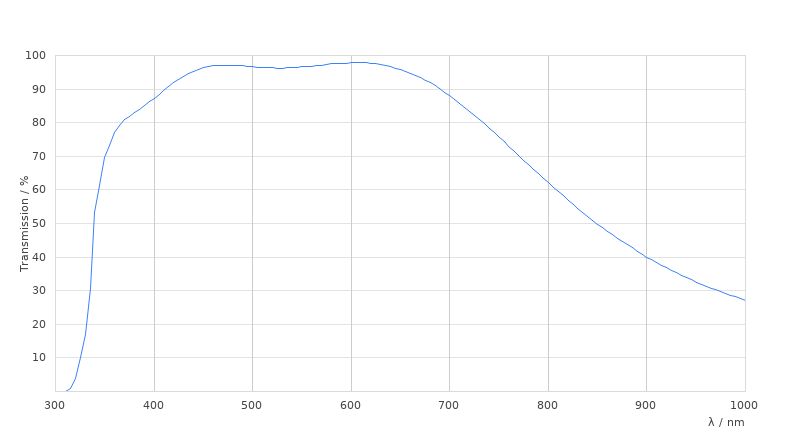

Transmission Curve

HC PL FLUOTAR (340) 20x/0,80 OIL

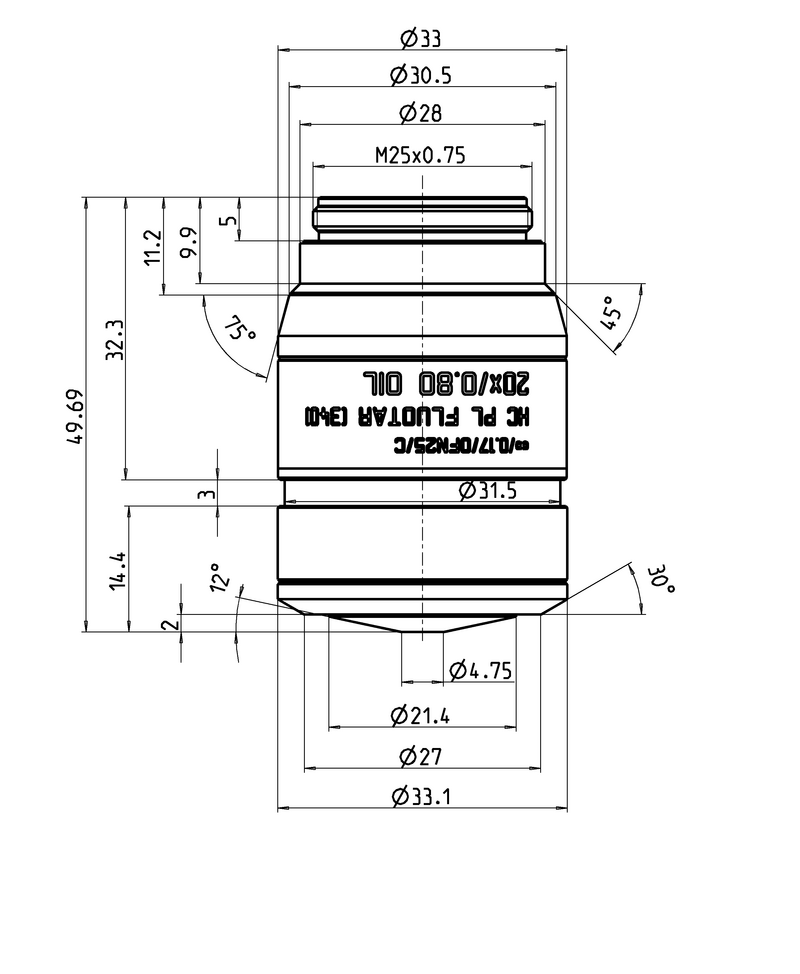

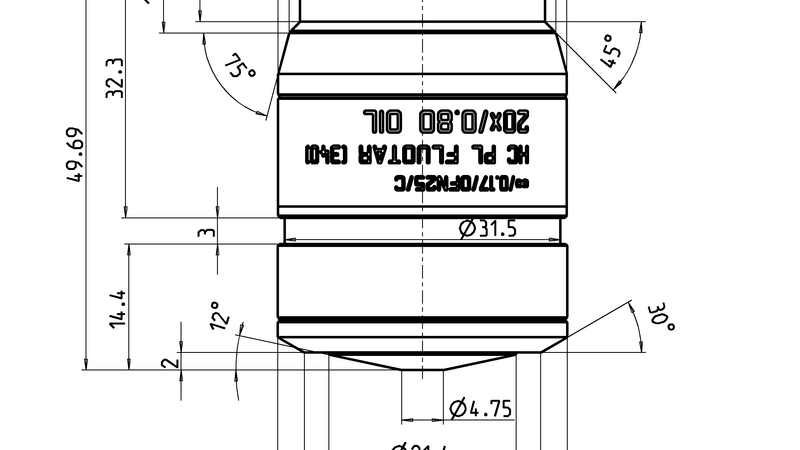

Dimension Sheet

HC PL FLUOTAR (340) 20x/0,80 OIL
