HC FLUOTAR L 25x/0,95 W VISIR

Article Number 11506375
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 18
Free Working Distance (WD in mm) 2.4
Immersion Water
Iris Diaphragm Without
Magnification 25⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.95
Objective Thread M25
Objective Type HC FLUOTAR L VISIR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques MP, Waterdispenser
Transmission IR (up to 1300nm)

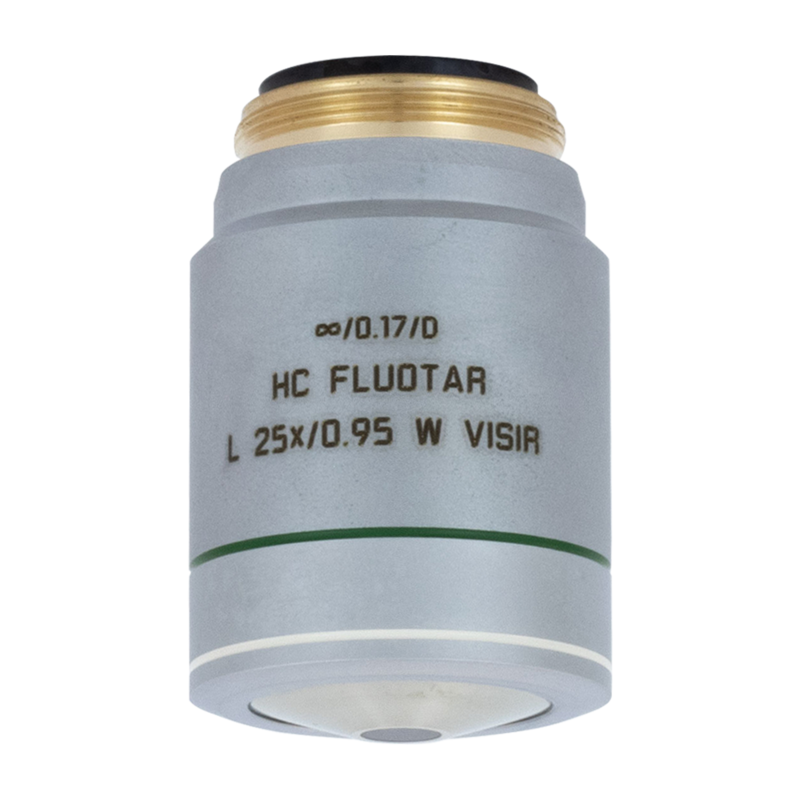

Figure

HC FLUOTAR L 25x/0,95 W VISIR

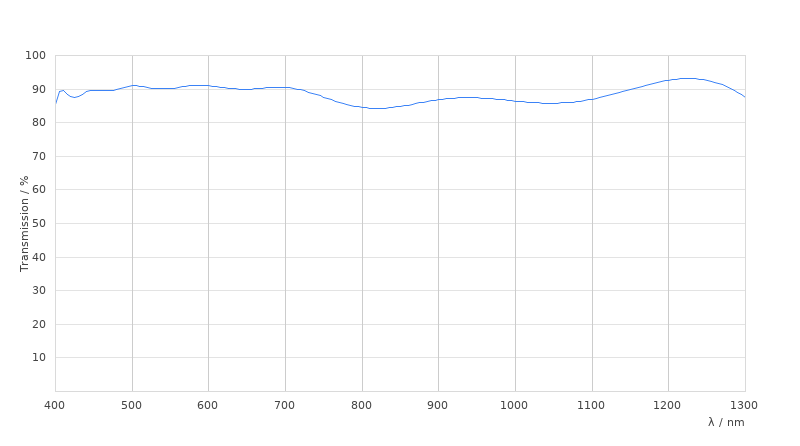

Transmission Curve

HC FLUOTAR L 25x/0,95 W VISIR

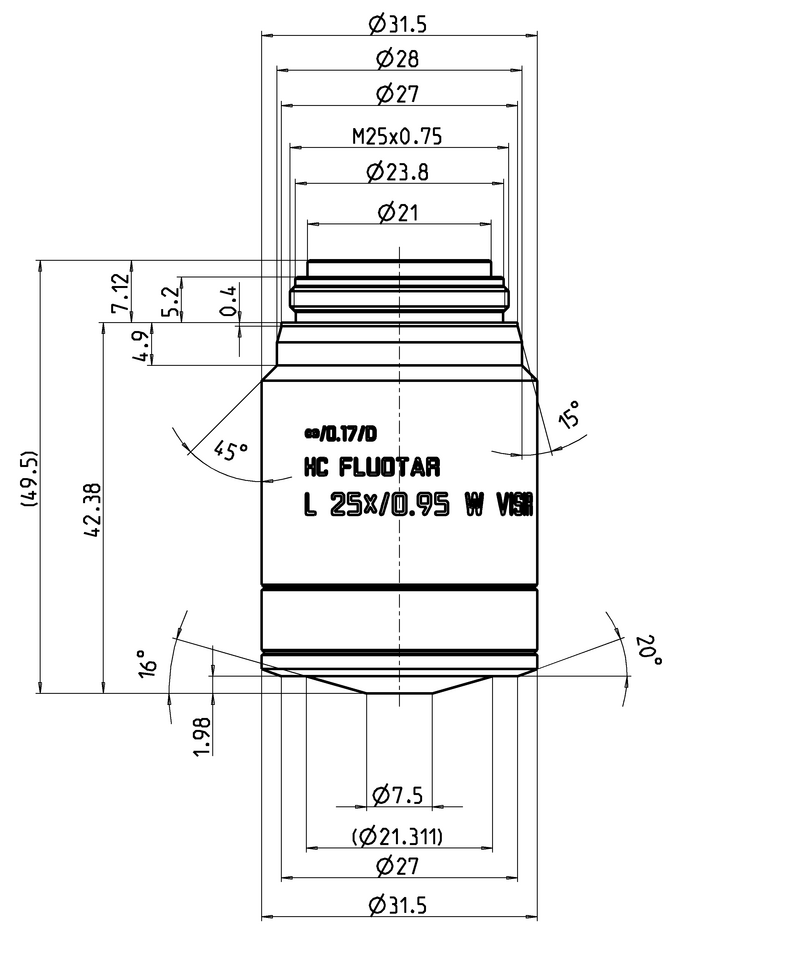

Dimension Sheet

HC FLUOTAR L 25x/0,95 W VISIR
