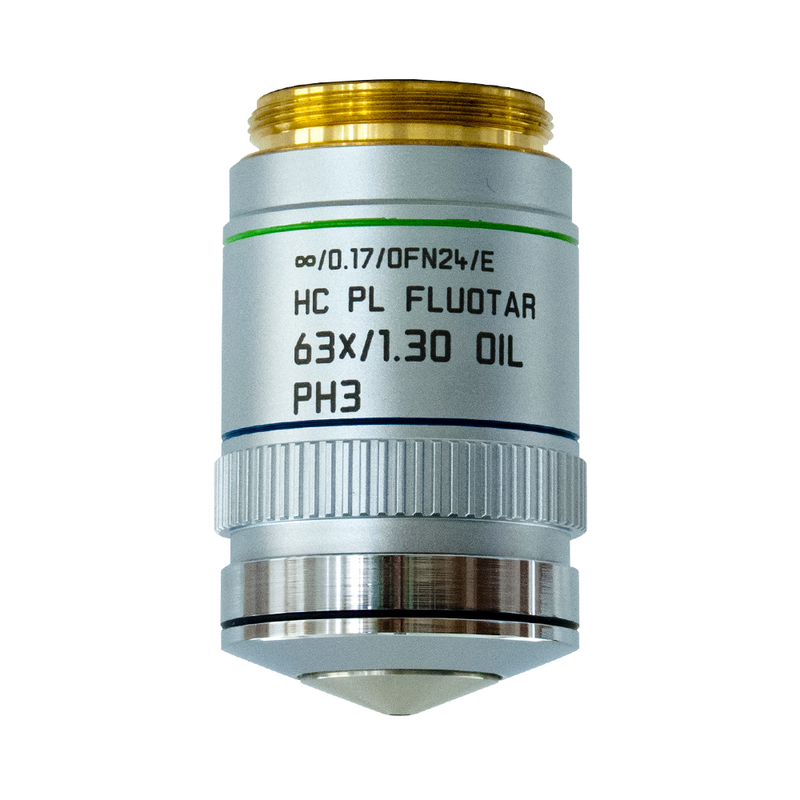

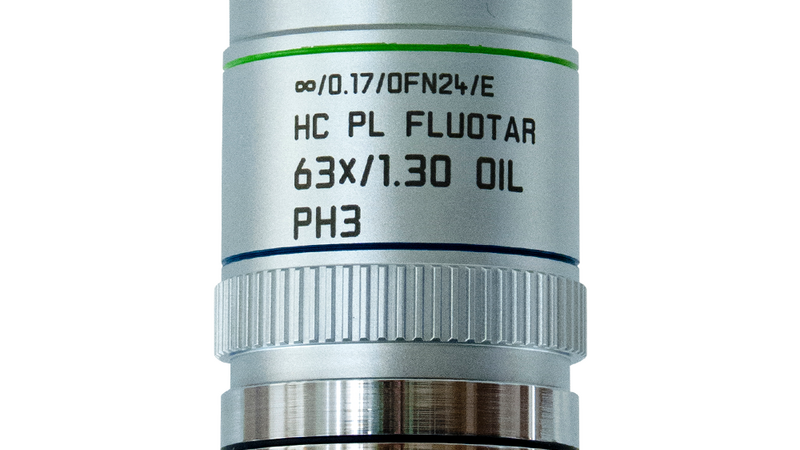

Microscope Objective HC PL FLUOTAR 63x/1,30 OIL PH3
<p>Objective HC PL FLUOTAR 63x/1,30 OIL PH3 has a magnification of 63X and a numerical aperture of 1.3mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.16mm and a FN of 24.</p>
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Article Number | 11506385 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | E |
| Field Number (FN) | 24 |
| Free Working Distance (WD in mm) | 0.16 |
| Immersion | Oil |
| Iris Diaphragm | Without |
| Magnification | 63⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, FLUO |
| Numerical Aperture | 1.3 |
| Objective Thread | M25 |
| Objective Type | PL FLUOTAR |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | PH3 |

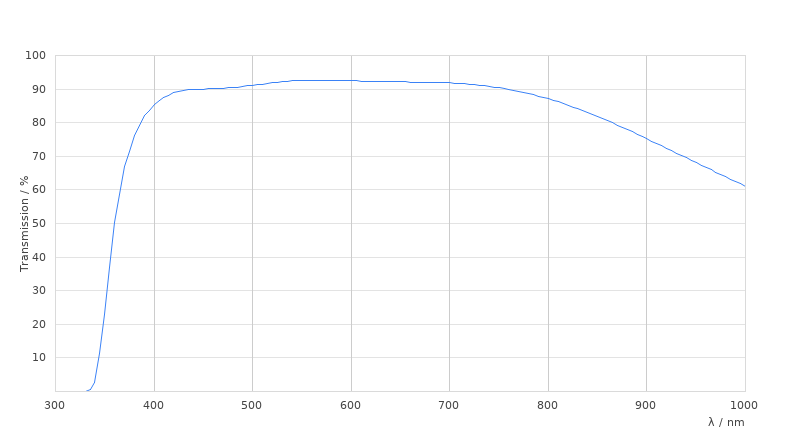

| Transmission | UV (365nm) |
