Microscope Objective HC PL FLUOTAR 4x/0,13

<p>Objective HC PL FLUOTAR 4x/0,13 has a magnification of 4X and a numerical aperture of 0.13mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 17mm and a FN of 25.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR 4x/0,13
HC PL FLUOTAR 4x/0,13
HC PL FLUOTAR 4x/0,13
HC PL FLUOTAR 4x/0,13
HC PL FLUOTAR 4x/0,13
HC PL FLUOTAR 4x/0,13

Technical Specs

Article Number 11506412
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 17
Immersion Dry
Iris Diaphragm Without
Magnification 4⨉
Contrasting Methodes TL-BF, TL-P, TL-DF, FLUO
Numerical Aperture 0.13
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LightSheetIllumination

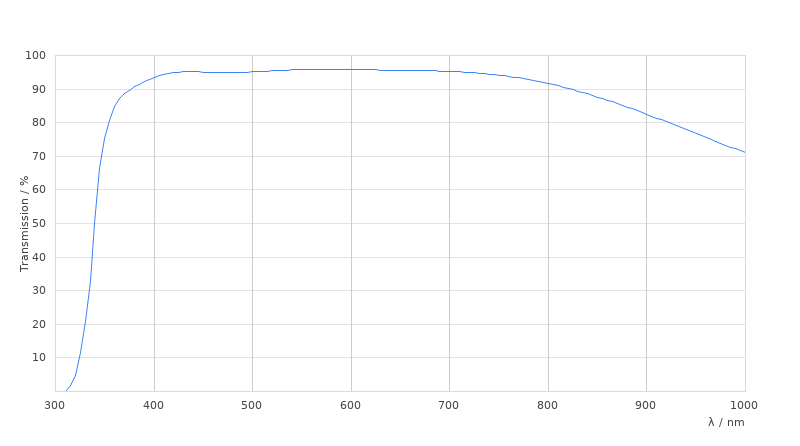

Transmission UV (340nm)
