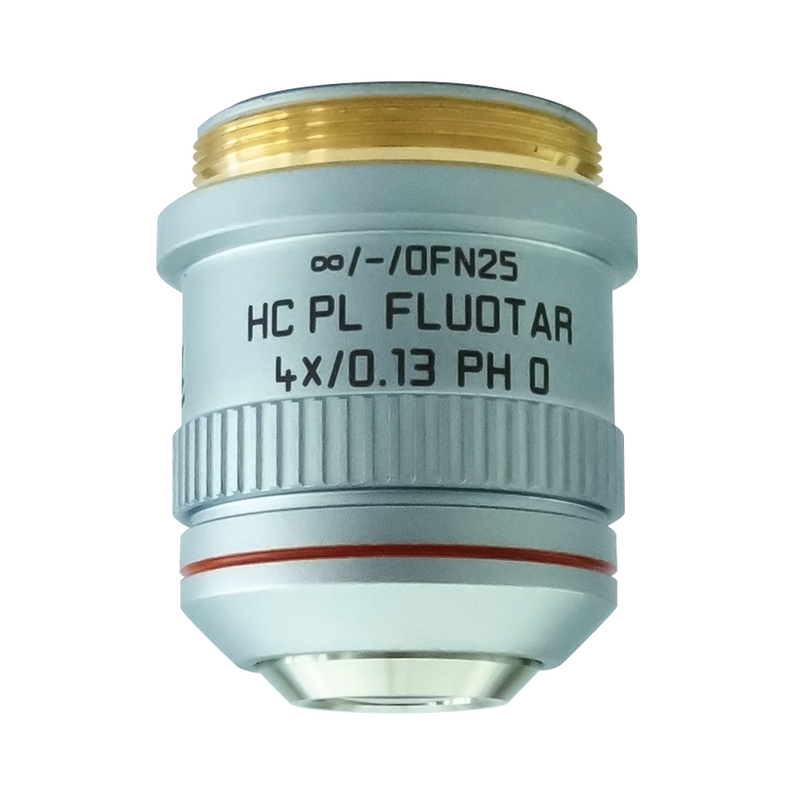

Microscope Objective HC PL FLUOTAR 4x/0,13 PH0
Product No. 11506413
Objective HC PL FLUOTAR 4x/0,13 PH0 has a magnification of 4X and a numerical aperture of 0.13mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 17mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11506413 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 17 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 4⨉ |
| Contrasting Methodes | TL-BF, TL-P, TL-DF, TL-PH, FLUO |
| Numerical Aperture | 0.13 |
| Objective Thread | M25 |
| Objective Type | PL FLUOTAR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | PH0 |

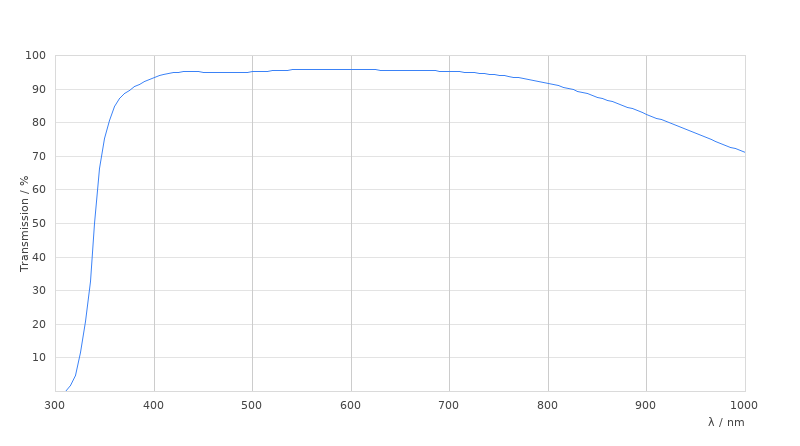

| Transmission | UV (340nm) |
