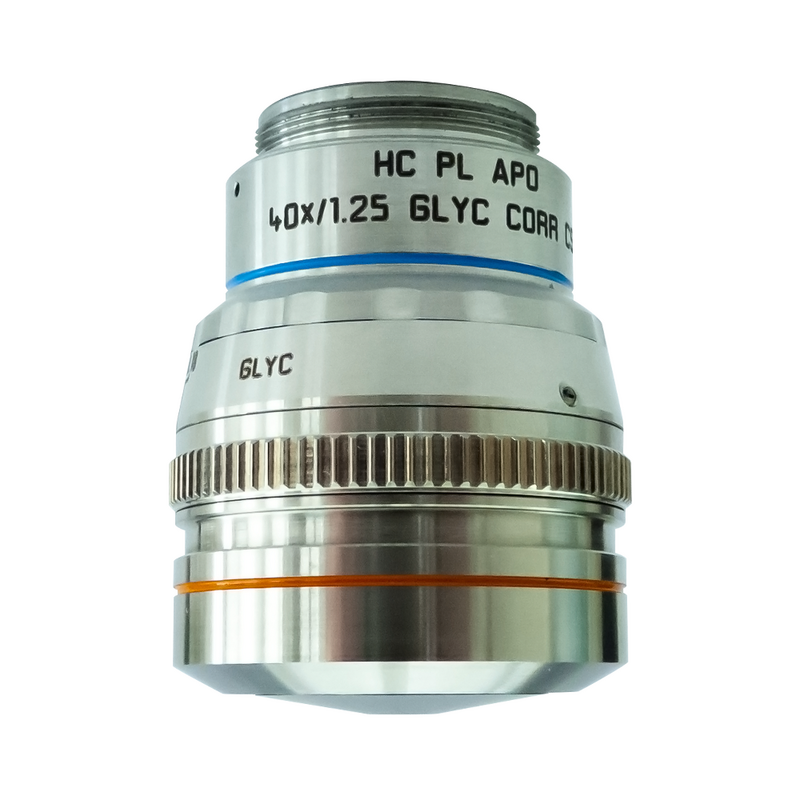

Microscope Objective HC PL APO 40x/1,25 GLYC CORR CS2
<p>Objective HC PL APO 40x/1,25 GLYC CORR CS2 has a magnification of 40X and a numerical aperture of 1.25mm. For use in glycerol immersion material environment and attached with an objective thread of M25 having a free working distance of 0.35mm and a FN of 24.</p>
Technical Specs
Article Number | 11506422 |
---|---|
Correction Ring (CORR) | CORR |
Coverglass | With |
Exit Pupil Position/DIC prism | E |
Field Number (FN) | 24 |
Free Working Distance (WD in mm) | 0.35 |
Immersion | GLYC |
Iris Diaphragm | Without |
Magnification | 40⨉ |
Contrasting Methodes | TL-BF, TL-DIC, FLUO |
Numerical Aperture | 1.25 |
Objective Thread | M25 |
Objective Type | PLAN APO |
Spring Loaded | Yes |
Suitable for AFC (Adaptive Focus Control) | AFC suitable |
Techniques | CS2 |

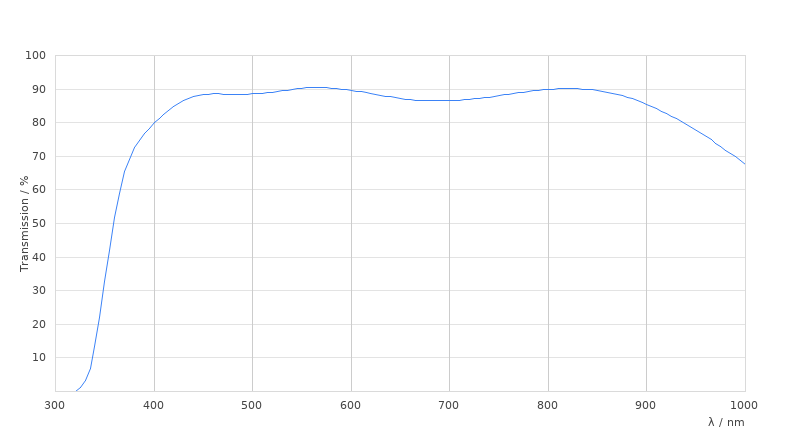

Transmission | UV (340nm) |
